Honda CBR500RAF (2015) F-24 SIDE COVER / REAR COWL

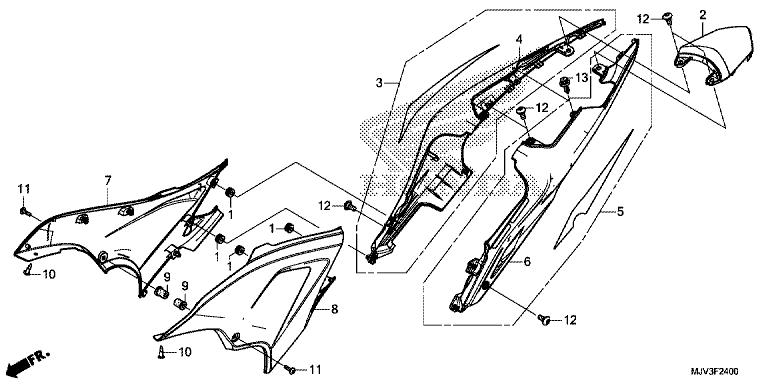

F-24 SIDE COVER / REAR COWL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Grommet A, Rr. Cover (8X1 (11344-MB0-000) |
E | €3.39 |
|
| 2 |
Cowl, Rr. Center *R263* (77231-MGZ-J00ZB) |
E | €38.67 |
|
| 2 |
Cowl, Rr. Center *Nhb01* (77231-MGZ-J00ZC) |
E | €38.67 |
|
| 4 |
Cowl, R. Rr. *R263* (77241-MGZ-J00ZD) |
E | €165.98 |
|
| 4 |
Cowl, R. Rr. *Nhb01* (77241-MGZ-J00ZE) |
E | €165.98 |
|
| 6 |
Cowl, L. Rr. *Nhb01* (77251-MGZ-J00ZE) |
E | €165.98 |
|
| 6 |
Cowl, L. Rr. *R263* (77251-MGZ-J00ZD) |
E | €165.98 |
|
| 7 |
Cover, R. Side (83510-MGZ-J00) |
E | €99.13 |
|
| 8 |
Cover, L. Side (83610-MGZ-J00) |
E | €99.13 |
|
| 9 |
Nut, Cowl Setting, 6Mm (90114-KAS-900) |
E | €3.04 |
|
| 10 |
Rivet, Push (90116-MCS-G00) |
E | €1.57 |
|
| 11 |
Screw, Pan, 6X22 (90130-KYJ-900) |
E | €3.14 |
|
| 12 |
Screw, Pan, 6X14 (90133-KPP-T00) |
E | €1.99 |
|
| 13 |
Clip, Body Cover (90683-GR1-003) |
E | €2.35 |
|
