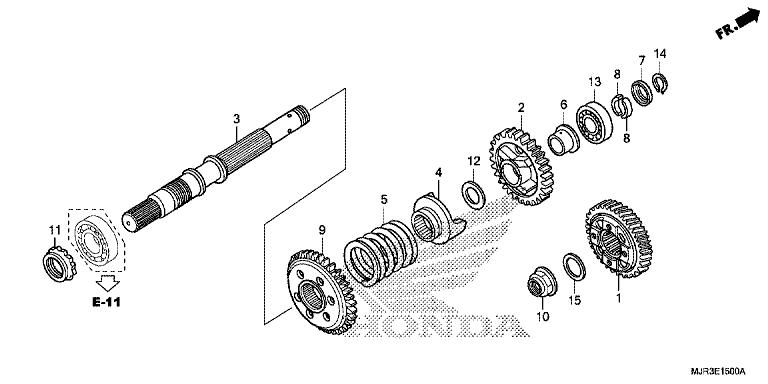

Honda GL1800CF (2015) E-15 FINAL SHAFT
E-15 FINAL SHAFT
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Gear Comp., Final Drive ( (23500-MCA-A20) |
Ed | €269.95 |
|
| 2 |
Gear, Final Driven (36T) (23521-MCA-000) |
Ed | €154.24 |
|
| 3 |
Shaft, Final Gear (23611-MEC-000) |
Ed | €190.08 |
|
| 4 |
Lifter, Final Damper (23721-MJG-A00) |
Ed | €63.42 |
|
| 5 |
Spring, Final Damper (23732-MJG-A00) |
Ed | €68.56 |
|
| 6 |
Collar, 22X26X27.6 (23733-MN5-000) |
Ed | €16.20 |
|
| 7 |
Retainer, Final Shaft (23741-MN5-000) |
Ed | €3.32 |
|
| 8 |
Washer, Spring Stopper (23742-MN5-000) |
Ed | €9.95 |
|
| 9 |
Gear, Reverse Driven (45T (28178-MCA-000) |
Ed | €122.89 |
|
| 10 |
Nut, Special, 22Mm (90205-MCA-780) |
Ed | €14.70 |
|
| 11 |
Nut, Lock, 30Mm (90241-MB0-000) |
Ed | €18.27 |
|
| 12 |
Washer, 22.2X35X2.6 (90498-MN5-000) |
Ed | €5.20 |
|
| 13 |
Bearing, Radial Ball, 22X (91003-MCA-003) |
Ed | €31.75 |
|
| 14 |
Circlip, External, 22Mm (94510-22000) |
Ed | €0.92 |
|
| 15 |
Washer, 22.1X36X2.6 (90498-MEC-000) |
Ed | €6.42 |
|
