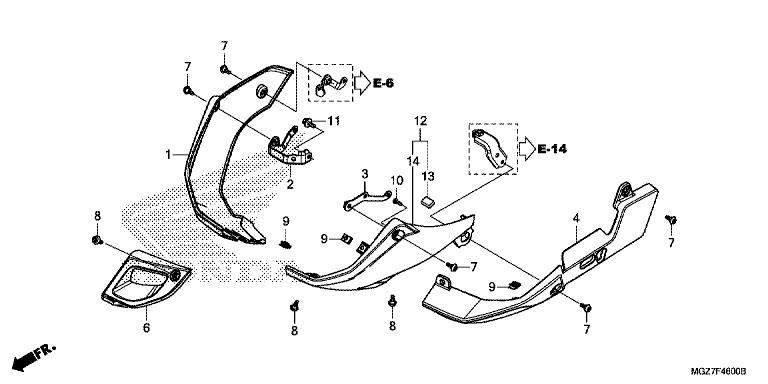

Honda CB500XAF (2015) F-46 UNDER COWL
F-46 UNDER COWL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cover, R. Under (64310-MGZ-J80) |
E | €41.59 |
|
| 2 |
Stay, R. Under Cover (64316-MGZ-J80) |
E | €8.13 |
|
| 3 |
Stay, L. Under Cover (64317-MGZ-J80) |
E | €8.13 |
|
| 4 |
Cowl, L. Under (64320-MGZ-J41) |
E | €52.00 |
|
| 6 |
Cover B, L. Under (64321-MGZ-J80) |
E | €14.55 |
|
| 7 |
Screw, Pan, 6X14 (90133-KPP-T00) |
E | €1.99 |
|
| 8 |
Screw, Pan, 5X14 (90134-KPP-T00) |
E | €1.99 |
|
| 9 |
Nut, Clip, 5Mm (90677-KAN-T00) |
E | €3.60 |
|
| 10 |
Screw, Tapping, 4X12 (93903-24380) |
E | €0.47 |
|
| 11 |
Bolt, Flange, 6X14 (96001-0601407) |
E | €1.22 |
|
| 14 |
Cover A, L. Under (64320-MGZ-J81) |
E | €52.00 |
|
