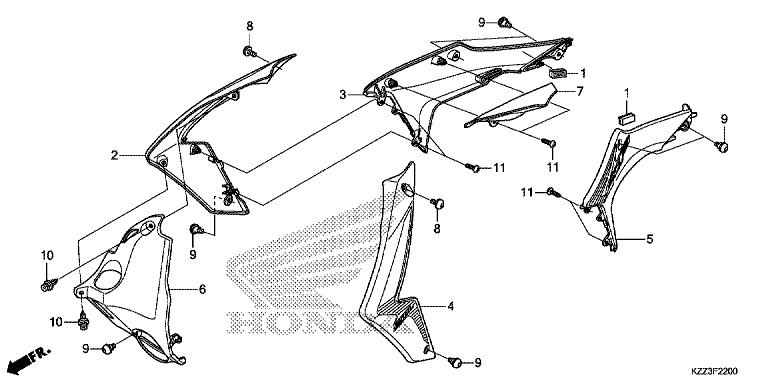

Honda CRF250MF (2015) F-22 RADIATOR SHROUD
F-22 RADIATOR SHROUD
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 2 |
Shroud Set, R. Fr. (Wl) * (19070-KZZ-L30ZB) |
E | €115.93 |
|
| 3 |
Shroud Set, R. Rr. (Wl) * (19075-KZZ-L30ZB) |
E | €94.35 |
|
| 4 |
Shroud Set, L. Fr. (Wl) * (19090-KZZ-L30ZB) |
E | €106.84 |
|
| 5 |
Shroud Set, L. Rr. (Wl) * (19095-KZZ-L30ZB) |
E | €69.35 |
|
| 6 |
Cover, Fr. Reserve Tank (19160-KZZ-900) |
E | €39.80 |
|
| 7 |
Cover, Rr. Reserve Tank (19170-KZZ-900) |
E | €13.38 |
|
| 8 |
Screw, Pan, 6X10 (90132-KPP-T00) |
E | €1.99 |
|
| 9 |
Screw, Pan, 6X14 (90133-KPP-T00) |
E | €1.99 |
|
| 10 |
Clip, Body (90683-MBW-003) |
E | €3.25 |
|
| 11 |
Screw, Tapping, 4X12 (93903-24320) |
E | €0.90 |
|
