Honda NSS125DF (2015) F-39 REAR FENDER / LICENSE LIGHT

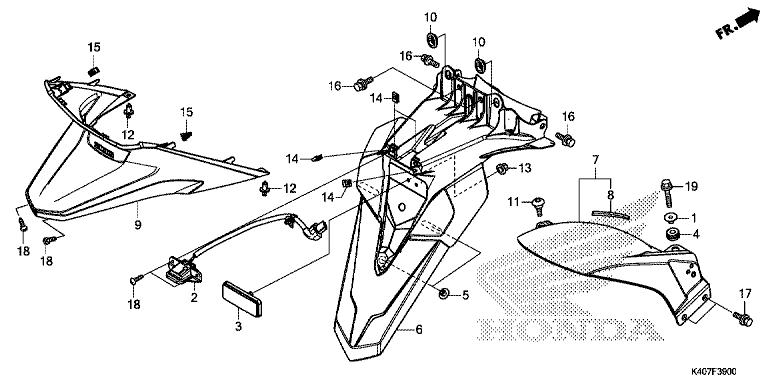

F-39 REAR FENDER / LICENSE LIGHT
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Collar, Silencer (18357-KA4-710) |
Ed | €5.20 |
|
| 2 |
Light Assy., License (33720-K35-V01) |
Ed | €103.48 |
|
| 3 |
Reflector, Reflex (Tri.O. (33741-GT8-652) |
Ed | €17.27 |
|
| 4 |
Grommet, Horn Stay (38119-MM8-000) |
Ed | €4.46 |
|
| 5 |
Collar, Fr. Wheel Cover (44125-MN5-000) |
Ed | €4.49 |
|
| 6 |
Fender A, Rr. (80101-K40-F00) |
Ed | €58.97 |
|
| 7 |
Fender Comp., Rr. Inner (80103-K40-F30) |
Ed | €23.43 |
|
| 8 |
Mat, Rr. Fender (Inner) (80105-K40-F00) |
Ed | €14.38 |
|
| 9 |
Cover Set, License Light (80110-K40-F00ZA) |
Ed | €64.21 |
|
| 10 |
Grommet, Air Cleaner Case (83551-GE2-000) |
Ed | €3.68 |
|
| 11 |
Bolt, Socket, 6X18 (90101-K29-900) |
Ed | €5.67 |
|
| 12 |
Clip, Bumper Seal (90116-SP0-003) |
Ed | €3.81 |
|
| 13 |
Nut, U, 5Mm (90301-KWN-901) |
Ed | €3.25 |
|
| 14 |
Nut, Spring, 4Mm (90302-KWW-A00) |
Ed | €2.35 |
|
| 15 |
Clip, Snap Fitting (90601-SJA-003) |
Ed | €2.07 |
|
| 16 |
Bolt-Washer, 6X12 (93404-0601200) |
Ed | €1.14 |
|
| 17 |
Bolt-Washer, 6X12 (93404-0601207) |
Ed | €1.03 |
|
| 18 |
Screw, Tapping, 4X16 (93903-34480) |
Ed | €0.47 |
|
| 19 |
Bolt, Flange, 6X22 (95701-0602200) |
Ed | €1.39 |
|
