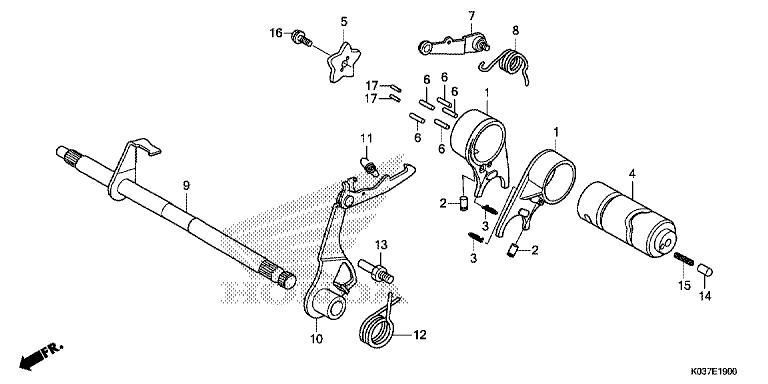

Honda AFS110CSFF (2015) E-19 GEARSHIFT DRUM
E-19 GEARSHIFT DRUM
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Fork, Gearshift (24211-KWW-741) |
E | €39.38 |
|
| 2 |
Pin, Gearshift Fork Guide (24261-121-742) |
E | €2.82 |
|
| 3 |
Clip, Gearshift Fork Guid (24263-KVR-C00) |
E | €1.43 |
|
| 4 |
Drum, Gearshift (24301-KWW-741) |
E | €61.82 |
|
| 5 |
Plate, Gearshift Drum Sto (24411-KWW-740) |
E | €8.28 |
|
| 6 |
Pin, Gearshift Drum (24421-200-000) |
E | €4.60 |
|
| 7 |
Arm Comp., Shift Drum Sto (24430-KVR-C00) |
E | €5.39 |
|
| 8 |
Spring, Shift Drum Stoppe (24435-KWW-C00) |
E | €1.78 |
|
| 9 |
Spindle,Comp Gear (24610-KWW-740) |
E | €39.88 |
|
| 10 |
Arm Comp., Gearshift (24630-KWW-C00) |
E | €26.68 |
|
| 11 |
Spring, Gearshift Arm (24641-KVR-C00) |
E | €4.17 |
|
| 12 |
Spring, Gearshift Return (24651-KVR-C00) |
E | €1.99 |
|
| 13 |
Pin, Shift Return Spring (24652-KPH-900) |
E | €1.57 |
|
| 14 |
Cap, Change Switch Contac (35751-KWW-C00) |
E | €3.60 |
|
| 15 |
Spring, Change Switch Con (35752-KPH-900) |
E | €0.28 |
|
| 16 |
Bolt, Knock, 6Mm (90071-171-010) |
E | €2.50 |
|
| 17 |
Roller, 3X10 (90704-KWW-C00) |
E | €0.86 |
|
