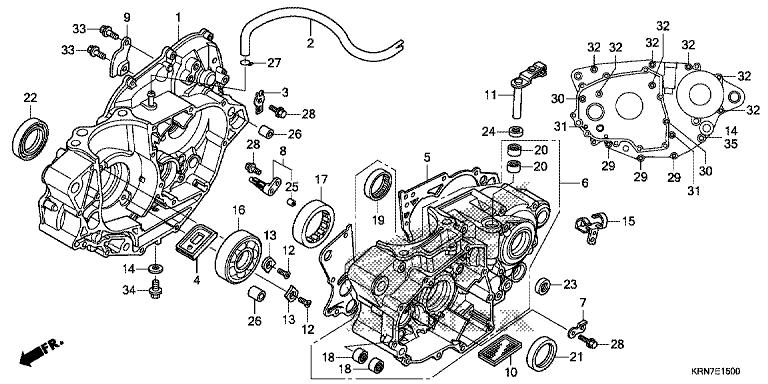

| 1 |
Crankcase Comp., R. (11100-KRN-A80)
|
Ed
|
€588.41
|
|
| 2 |
Tube, Breather (11105-KRN-670)
|
Ed
|
€11.77
|
|
| 3 |
Plate, Tube Guide (11106-MEN-A30)
|
Ed
|
€2.50
|
|
| 4 |
Valve Comp., Reed (11110-MEN-A31)
|
Ed
|
€38.06
|
|
| 5 |
Gasket, Crankcase (11191-KRN-A40)
|
Ed
|
€27.54
|
|
| 6 |
Crankcase Comp., L. (11200-KRN-A80)
|
Ed
|
€665.71
|
|
| 7 |
Plate, Cam Chain Guide (11206-KRN-A40)
|
Ed
|
€5.31
|
|
| 8 |
Jet Comp., Piston, #70 (11210-KRN-A40)
|
Ed
|
€47.80
|
|
| 9 |
Plate, Oil Guide (15201-KRN-A40)
|
Ed
|
€8.24
|
|
| 10 |
Screen, Oil Filter (15421-MEN-A31)
|
Ed
|
€19.37
|
|
| 11 |
Lever Comp., Clutch Lifte (22810-KRN-A80)
|
Ed
|
€43.37
|
|
| 12 |
Screw, Special Flat, 6X17 (90001-MEN-850)
|
Ed
|
€2.29
|
|
| 13 |
Plate, Bearing Holder (90441-MEN-A30)
|
Ed
|
€5.99
|
|
| 14 |
Washer, Sealing, 8Mm (90474-333-000)
|
Ed
|
€2.14
|
|
| 15 |
Guide, Tube (90610-MEN-A30)
|
Ed
|
€9.31
|
|
| 16 |
Bearing, Radial Ball, 30X (91001-KRN-671)
|
Ed
|
€38.24
|
|
| 17 |
Bearing, Special Roller (91002-KRN-A11)
|
Ed
|
€69.45
|
|
| 18 |
Bearing, Needle, 9Mm (Ntn (91006-HA0-003)
|
Ed
|
€9.31
|
|
| 19 |
Bearing, Shell, 33X38X8 ( (91022-KA4-740)
|
Ed
|
€16.59
|
|
| 20 |
Bearing, Needle, 12X16X10 (91053-719-005)
|
Ed
|
€36.14
|
|
| 21 |
Oil Seal, 38X52X7 (Arai) (91201-MEB-671)
|
Ed
|
€20.30
|
|
| 22 |
Oil Seal, 39X56X7.5 (Arai (91202-MEY-671)
|
Ed
|
€20.87
|
|
| 23 |
Oil Seal, 14X22X5 (Nok) (91203-KA4-771)
|
Ed
|
€6.21
|
|
| 24 |
Oil Seal, 12X18X3 (Arai) (91205-MEB-671)
|
Ed
|
€5.14
|
|
| 25 |
Dowel Pin, 8X10 (94301-08100)
|
Ed
|
€2.29
|
|
| 26 |
Dowel Pin, 14X20 (94301-14200)
|
Ed
|
€1.97
|
|
| 27 |
Clip, Tube (B10) (95002-02100)
|
Ed
|
€0.82
|
|
| 28 |
Bolt, Flange, 6X12 (96001-0601200)
|
Ed
|
€1.39
|
|
| 29 |
Bolt, Flange, 6X45 (96001-0604500)
|
Ed
|
€1.93
|
|
| 30 |
Bolt, Flange, 6X50 (96001-0605000)
|
Ed
|
€1.71
|
|
| 31 |
Bolt, Flange, 6X55 (96001-0605500)
|
Ed
|
€1.97
|
|
| 32 |
Bolt, Flange, 6X70 (96001-0607000)
|
Ed
|
€1.57
|
|
| 33 |
Bolt, Flange, 6X12 (96300-0601200)
|
Ed
|
€1.39
|
|
| 34 |
Bolt, Flange, 8X20 (96300-0802000)
|
Ed
|
€1.39
|
|
| 35 |
Bolt, Flange, 8X70 (96300-0807000)
|
Ed
|
€2.14
|
|
