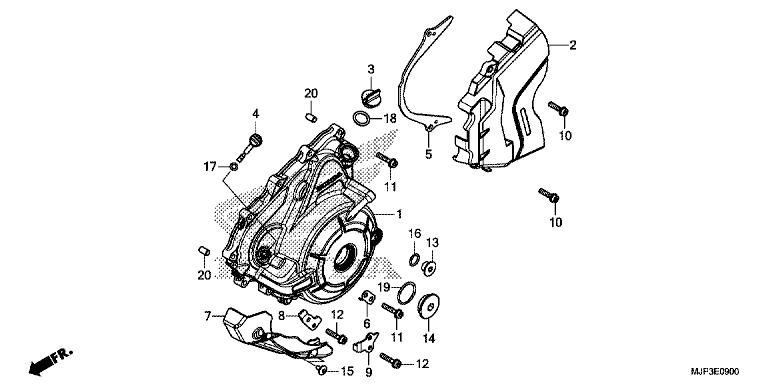

Honda CRF1000AG (2016) E-09 LEFT CRANKCASE COVER
E-09 LEFT CRANKCASE COVER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cover Comp., A.C. Generat (11320-MJP-G50) |
Ed | €316.36 |
|
| 2 |
Cover Comp., L. Rr. (11350-MJP-G50) |
Ed | €108.26 |
|
| 3 |
Cap, Oil Filler (15611-KA4-710) |
Ed | €12.52 |
|
| 4 |
Gauge, Oil Level (15650-MJP-G81) |
Ed | €24.14 |
|
| 5 |
Guide, Drive Chain (23812-MJP-G50) |
Ed | €15.55 |
|
| 6 |
Stay, Harness Clip (32156-MJP-G50) |
Ed | €6.21 |
|
| 7 |
Cover, A.C. Generator Cor (64401-MJP-G50) |
Ed | €26.43 |
|
| 8 |
Stay, Fr. A.C. Generator (64402-MJP-G50) |
Ed | €9.31 |
|
| 9 |
Stay, Rr. A.C. Generator (64403-MJP-G50) |
Ed | €8.77 |
|
| 10 |
Bolt, Flange Socket, 6X25 (90003-MJP-G50) |
Ed | €3.68 |
|
| 11 |
Bolt, Flange Socket, 6X28 (90004-MJP-G50) |
Ed | €4.96 |
|
| 12 |
Bolt, Flange Socket, 6X30 (90006-MJP-G50) |
Ed | €4.17 |
|
| 13 |
Cap, 14Mm (90084-MN8-010) |
Ed | €11.13 |
|
| 14 |
Cap, 30Mm (90087-MJP-G50) |
Ed | €25.25 |
|
| 15 |
Screw, Special, 5X11 (90114-MGE-000) |
Ed | €5.74 |
|
| 16 |
O-Ring,13.8X2.5 (91303-MG7-003) |
Ed | €4.71 |
|
| 17 |
O-Ring, 6.3X2.3 (Arai) (91303-MJ0-003) |
Ed | €2.46 |
|
| 18 |
O-Ring, 18X3 (91307-035-000) |
Ed | €1.97 |
|
| 19 |
O-Ring, 29.7X2.4 (Nok) (91356-425-005) |
Ed | €3.42 |
|
| 20 |
Dowel Pin, 8X14 (94301-08140) |
Ed | €1.75 |
|
