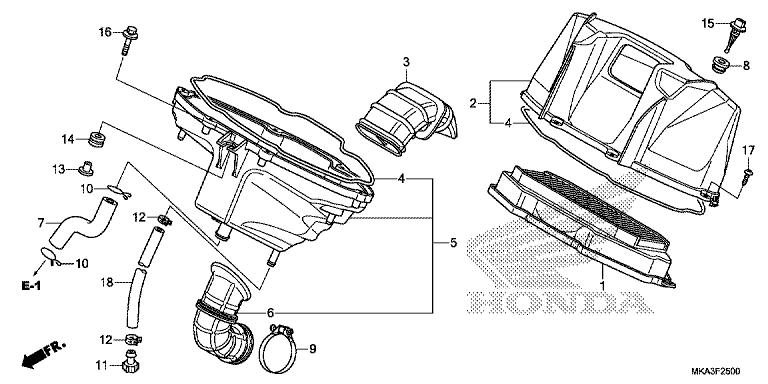

Honda NC750XDG (2016) F-25 AIR FILTER / AIR CLEANER
F-25 AIR FILTER / AIR CLEANER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Element Comp., Air Cleane (17210-MGS-D30) |
Ed | €96.42 |
|
| 2 |
Cover Sub Assy., Air Clea (17220-MGS-D31) |
Ed | €140.07 |
|
| 3 |
Duct, Air Cleaner (17222-MGS-D31) |
Ed | €91.43 |
|
| 4 |
Seal, Air Cleaner (17223-MGS-D30) |
Ed | €9.82 |
|
| 5 |
Case Sub Assy., Air Clean (17230-MGS-D31) |
Ed | €254.40 |
|
| 6 |
Tube, Air Cleaner Connect (17232-MGS-D31) |
Ed | €63.89 |
|
| 7 |
Tube, Breather (17233-MGS-D30) |
Ed | €9.46 |
|
| 8 |
Grommet, Ta Sensor (17234-MGS-D30) |
Ed | €3.71 |
|
| 9 |
Band, Air Cleaner Connect (17235-MGS-D31) |
Ed | €5.24 |
|
| 10 |
Clip, Breather Tube (17236-MGS-D30) |
Ed | €4.39 |
|
| 11 |
Plug (17237-MGS-D30) |
Ed | €7.60 |
|
| 12 |
Clamp, Tube (17238-MGS-D30) |
Ed | €2.46 |
|
| 13 |
Collar, Air Cleaner Mount (17239-MGS-D30) |
Ed | €6.03 |
|
| 14 |
Rubber, Taillight (33712-KT1-670) |
Ed | €2.53 |
|
| 15 |
Sensor Assy., Air Tempera (37880-MCA-003) |
Ed | €43.44 |
|
| 16 |
Bolt-Washer, 6X25 (93404-0602508) |
Ed | €1.22 |
|
| 17 |
Screw, Tapping, 5X20 (93903-25480) |
Ed | €0.92 |
|
| 18 |
Tube, Vinyl, 8X12X190 (95 (95003-2301960) |
Ed | €4.02 |
|
