Honda CRF125FBH (2017) E-09 LEFT CRANKCASE COVER

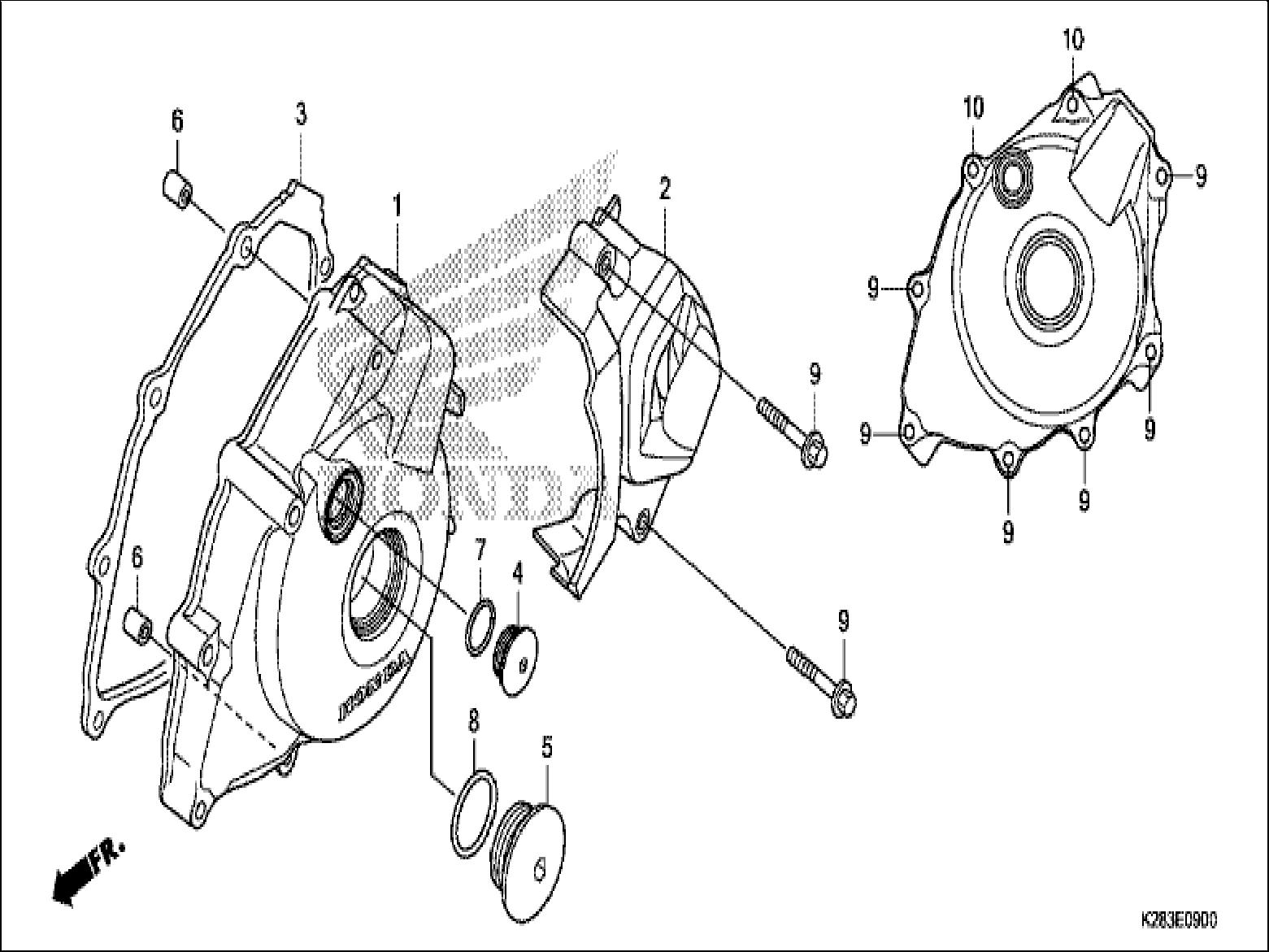

E-09 LEFT CRANKCASE COVER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cover, L. Crankcase (11341-KYY-900) |
Ed | €115.36 |
|
| 2 |
Cover Comp., L. Rr. (11360-K28-910) |
Ed | €46.73 |
|
| 3 |
Gasket, L. Crankcase Cove (11395-KWS-900) |
Ed | €15.94 |
|
| 4 |
Cap, 14Mm (90084-KTT-900) |
Ed | €1.61 |
|
| 5 |
Cap, 32Mm (90087-KRM-840) |
Ed | €15.09 |
|
| 6 |
Dowel Pin, 8X14 (90702-KRM-840) |
Ed | €2.53 |
|
| 7 |
O-Ring, 13.8X2.5 (91303-KRM-840) |
Ed | €1.32 |
|
| 8 |
O-Ring, 31.7X2.4 (91305-KYY-900) |
Ed | €3.00 |
|
| 9 |
Bolt, Flange, 6X35 (96001-0603500) |
Ed | €1.57 |
|
| 10 |
Bolt, Flange, 6X60 (96001-0606000) |
Ed | €1.93 |
|
