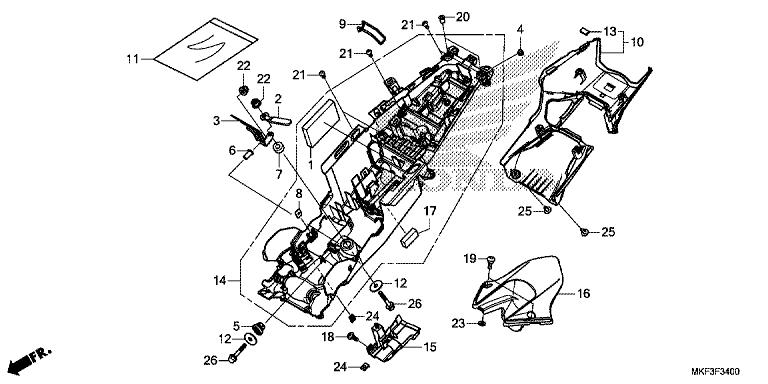

Honda CBR1000RAH (2017) F-34 REAR FENDER
F-34 REAR FENDER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 4 |
Plug, Handle Under Cover (53125-174-670) |
2Ed | €2.03 |
|
| 8 |
Nut, Special, 6Mm (61304-HB3-003) |
2Ed | €3.28 |
|
| 9 |
Band, Fr. Number Plate (64111-181-000) |
2Ed | €7.28 |
|
| 10 |
Cover, Regulator (77240-MKF-D40) |
2Ed | €163.22 |
|
| 11 |
Bag, Service Book (77251-GR1-000) |
2Ed | €5.14 |
|
| 13 |
Rubber, Rr. Fender (80102-MJS-A90) |
2Ed | €2.46 |
|
| 14 |
Fender B, Rr. (80105-MKF-D40) |
2Ed | €217.55 |
|
| 15 |
Cover, Servo Motor (80106-MKF-D40) |
2Ed | €20.18 |
|
| 16 |
Fender C, Rr. (80120-MGP-D01) |
2Ed | €36.92 |
|
| 17 |
Mat, Rr. Fender (83705-MKF-D40) |
2Ed | €2.89 |
|
| 18 |
Screw, Special, 5X14 (90102-MKA-D80) |
2Ed | €4.39 |
|
| 19 |
Screw, Special, 5X17 (90109-KW3-000) |
2Ed | €3.57 |
|
| 20 |
Nut, Cowl Setting, 5Mm (90111-KW3-003) |
2Ed | €2.85 |
|
| 21 |
Screw, Tapping, 4X10 (90114-MJK-N20) |
2Ed | €3.04 |
|
| 23 |
Washer, 5X12.5X2.3 (90503-MKF-D40) |
2Ed | €4.13 |
|
| 24 |
Nut, Clip, 5Mm (90677-KAN-T00) |
2Ed | €3.60 |
|
| 25 |
Clip, Body Cover (90683-GR1-003) |
2Ed | €2.35 |
|
