Honda CB1100NAH (2017) F-38-10 SUB HARNESS / IGNITION COIL

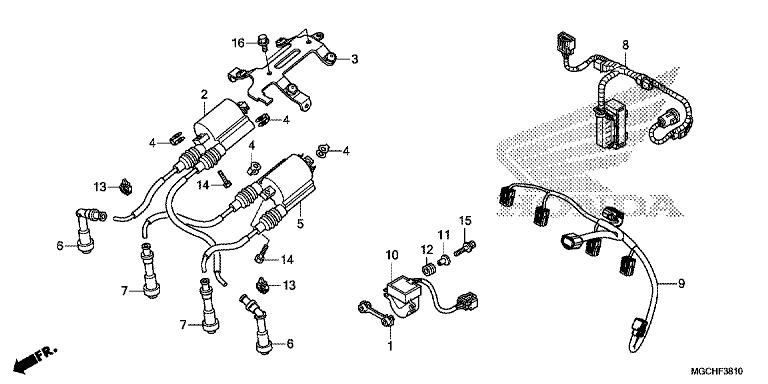

F-38-10 SUB HARNESS / IGNITION COIL
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Plate, Bank Angle Sensor (18311-MGC-000) |
E | €16.69 |
|
| 2 |
Coil Assy., Ignition (#1, (30511-MGC-D31) |
E | €176.49 |
|
| 3 |
Stay, Ignition Coil (30515-MGC-000) |
E | €41.59 |
|
| 4 |
Spacer, Ignition Coil (30520-ML7-000) |
E | €4.07 |
|
| 5 |
Coil Assy., Ignition (#2, (30521-MGC-D31) |
E | €176.49 |
|
| 6 |
Cap Assy., Noise Suppress (30700-MGC-013) |
E | €52.55 |
|
| 7 |
Cap Assy., Noise Suppress (30705-MGC-013) |
E | €52.55 |
|
| 8 |
Sub Harness, Abs (32102-MGC-JB0) |
E | €188.52 |
|
| 9 |
Sub Harness, Injector (32103-MGC-JB0) |
E | €174.25 |
|
| 10 |
Sensor Comp., Bank Angle (35161-MGC-JB1) |
E | €214.77 |
|
| 11 |
Collar (35162-MGC-003) |
E | €8.20 |
|
| 12 |
Grommet (35163-MGC-003) |
E | €4.21 |
|
| 13 |
Clip, Harness (90683-MGC-920) |
E | €4.07 |
|
| 14 |
Bolt, Hex., 6X20 (92101-060204J) |
E | €1.93 |
|
| 15 |
Bolt, Recessed, 6X20 (92301-060200A) |
E | €1.14 |
|
| 16 |
Bolt, Flange, 6X16 (95701-0601608) |
E | €1.03 |
|
