Honda SH125DH (2017) E-22 THROTTLE BODY/FUEL INJECTOR

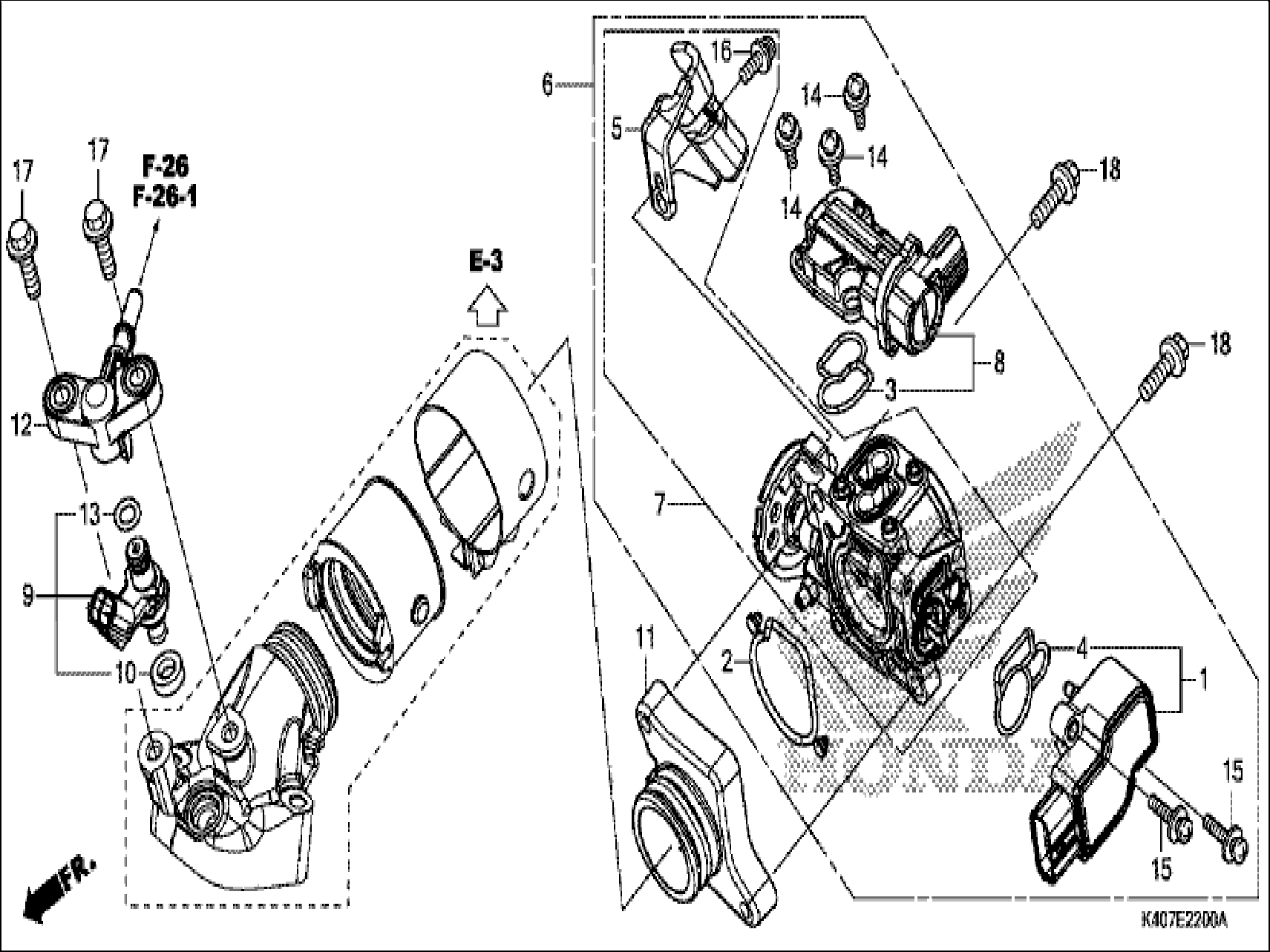

E-22 THROTTLE BODY/FUEL INJECTOR
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
SENSOR SET (16060-KVS-J02) |
E | €160.83 |
|
| 2 |
O-RING, THROTTLE BODY (16075-K36-J01) |
E | €5.31 |
|
| 3 |
O-Ring (16076-K35-V01) |
E | €3.53 |
|
| 4 |
O-Ring (16077-K35-V01) |
E | €2.85 |
|
| 5 |
Limited Quantity Available Please Contact Us (16169-K46-N21) |
|
||
| 6 |
BODY ASSY., THROTTLE (GQM (16400-K77-V01) |
E | €675.44 |
|
| 7 |
BODY SET (16410-K77-V01) |
E | €675.44 |
|
| 8 |
Valve Set, Idle Air Contr (16430-K35-V01) |
E | €108.01 |
|
| 9 |
INJECTOR ASSY., FUEL (16450-K35-V01) |
E | €127.62 |
|
| 10 |
Ring, Seal (16472-KPC-D50) |
E | €2.35 |
|
| 11 |
Joint Comp., Injector (17565-K01-900) |
E | €59.36 |
|
| 12 |
O-Ring, 6.3X2.2 (91301-GGL-J01) |
E | €11.62 |
|
| 13 |
Screw-Washer, 4X10 (93891-0401008) |
E | €0.64 |
|
| 14 |
Screw-Washer, 4X16 (93891-0401608) |
E | €0.75 |
|
| 15 |
Screw-Washer, 5X12 (93892-0501208) |
E | €1.03 |
|
| 16 |
Bolt, Flange, 6X22 (95701-0602200) |
E | €1.39 |
|
| 17 |
Bolt, Flange, 6X20 (96001-0602000) |
E | €1.39 |
|
