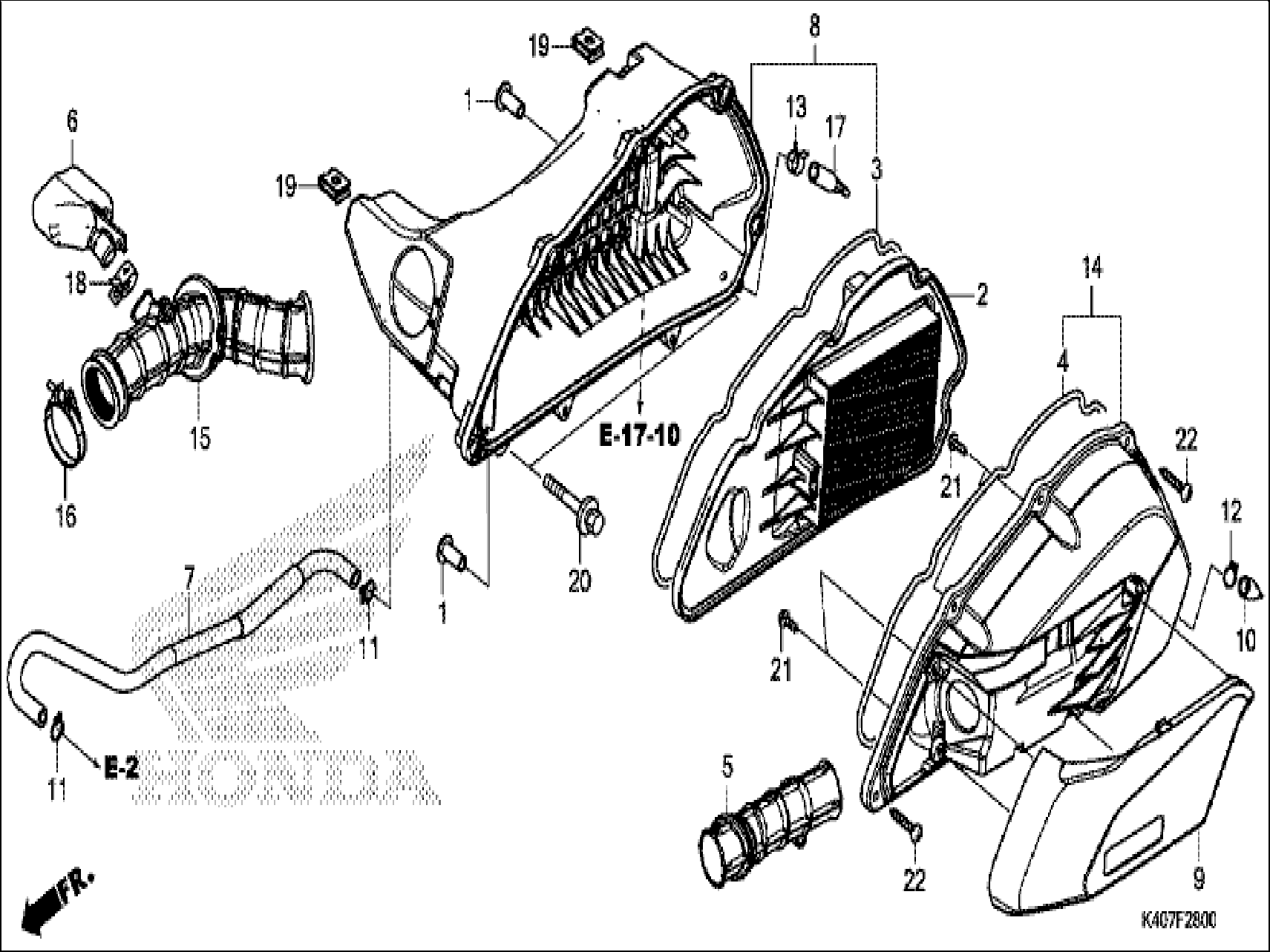

Honda SH125DH (2017) F-28 AIR CLEANER
F-28 AIR CLEANER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Collar, Air Cleaner Setti (17208-K01-D00) |
E | €8.00 |
|
| 2 |
ELEMENT COMP., AIR CLEANE (17210-K77-V00) |
E | €24.05 |
|
| 3 |
Seal, Air Cleaner (17213-K01-900) |
E | €3.39 |
|
| 4 |
DUCT, AIR CLEANER (17215-K77-D00) |
E | €21.29 |
|
| 5 |
Tube, Breather (17218-K01-900) |
E | €17.37 |
|
| 6 |
CASE SUB ASSY., AIR CLEAN (17225-K77-V00) |
E | €61.35 |
|
| 7 |
COVER, AIR CLEANER DUCT (17234-K77-V00) |
E | €18.02 |
|
| 8 |
Plug, Air Cleaner Drain (17236-KVB-900) |
E | €2.32 |
|
| 9 |
COVER SUB ASSY., AIR CLEA (17245-K77-V00) |
E | €21.12 |
|
| 10 |
TUBE, AIR CLEANER CONNECT (17253-K77-V00) |
E | €11.92 |
|
| 11 |
BAND, CONNECTING TUBE (40 (17254-KVB-T00) |
E | €7.81 |
|
| 12 |
Tube, Drain (17261-KVB-T00) |
E | €5.54 |
|
| 13 |
Nut, Clip, 6Mm (90305-GEE-710) |
E | €2.25 |
|
| 14 |
Bolt-Washer, 6X35 (93404-0603500) |
E | €1.18 |
|
| 15 |
Screw, Tapping, 4X12 (93903-24380) |
E | €0.47 |
|
| 16 |
Screw, Tapping, 5X20 (93903-25480) |
E | €0.92 |
|
| 17 |
Clip, Tube (B12.5) (95002-02130) |
E | €0.82 |
|
| 18 |
Clamp, Tube (D12) (95002-4120008) |
E | €1.78 |
|
| 19 |
Clip, Tube (C12) (95002-80000) |
E | €0.68 |
|
