Honda WW125SJ (2018) E-13 LEFT SIDE COVER

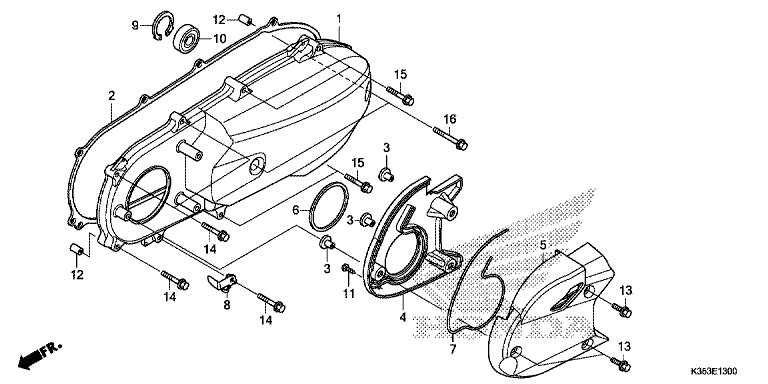

E-13 LEFT SIDE COVER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
COVER, L. SIDE (11341-KWN-780) |
TU | €208.78 |
|
| 2 |
GASKET, L. COVER (11395-KZR-600) |
TU | €28.25 |
|
| 3 |
Collar (19416-KEY-900) |
TU | €3.96 |
|
| 4 |
DUCT, L. COVER (19641-KWN-710) |
TU | €21.05 |
|
| 5 |
CAP, L. COVER (19642-KWN-710) |
TU | €24.97 |
|
| 6 |
Seal, Belt Cover Duct (19645-KWN-900) |
TU | €2.78 |
|
| 7 |
SEAL, L. COVER DUCT (19649-KWN-710) |
TU | €4.07 |
|
| 8 |
CLAMPER, RR. BRAKE CABLE (43455-K12-900) |
TU | €5.78 |
|
| 9 |
Circlip, Internal, 32Mm (90652-KVB-900) |
TU | €2.57 |
|
| 10 |
Bearing Comp. (6002Uu) (N (91005-KVB-900) |
TU | €18.94 |
|
| 11 |
Screw, Tapping, 4X16 (93903-24480) |
TU | €0.47 |
|
| 12 |
Dowel Pin, 8X14 (94301-08140) |
TU | €1.75 |
|
| 13 |
Bolt, Flange, 6X18 (96001-0601807) |
TU | €2.03 |
|
| 14 |
Bolt, Flange, 6X28 (96001-0602800) |
TU | €1.71 |
|
| 15 |
Bolt, Flange, 6X40 (96001-0604000) |
TU | €1.57 |
|
| 16 |
Bolt, Flange, 6X65 (96001-0606500) |
TU | €2.14 |
|
