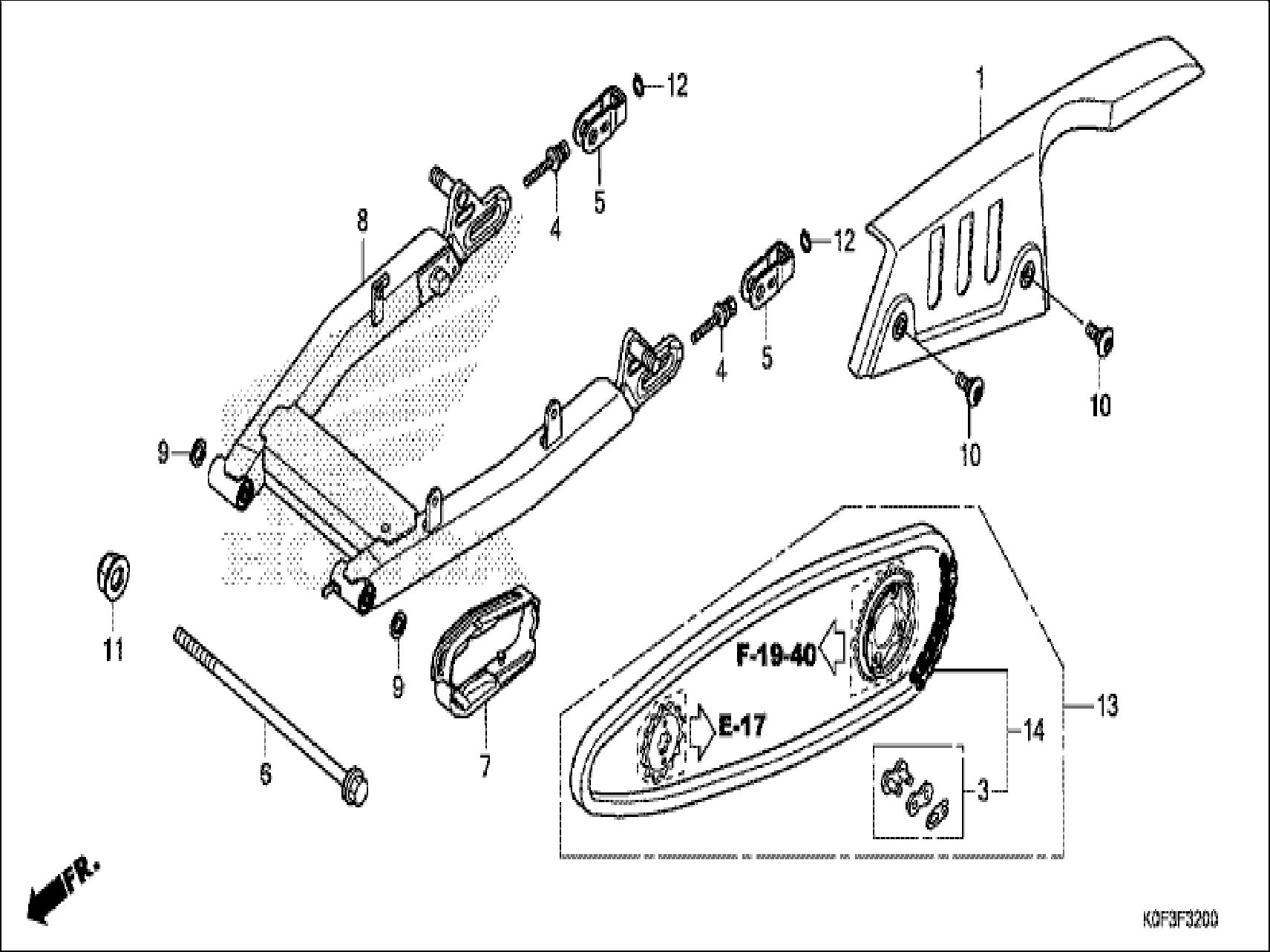

Honda Z125MAK (2019) F-32 SWINGARM
F-32 SWINGARM
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Case, Drive Chain (40510-K0F-T00) |
Ed | €23.30 |
|
| 3 |
Joint, Drive Chain (Daido (40531-KWV-003) |
Ed | €5.95 |
|
| 4 |
Bolt, Chain Adjusting (40542-K0F-T00) |
Ed | €4.39 |
|
| 5 |
Adjuster Comp., Chain (40543-K0F-T00) |
Ed | €7.38 |
|
| 6 |
Bolt, Swingarm Pivot (52101-K0F-T00) |
Ed | €24.82 |
|
| 7 |
Slider, Chain (52170-K0F-T00) |
Ed | €37.77 |
|
| 8 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 9 |
Washer, Pivot Bolt (90122-KWB-600) |
Ed | €3.25 |
|
| 10 |
Screw, Pan, 6X14 (90133-KPP-T00) |
Ed | €1.99 |
|
| 11 |
Nut, U, 12Mm (90306-KWN-701) |
Ed | €6.92 |
|
| 12 |
Circlip, External, 10Mm (94511-10000) |
Ed | €1.28 |
|
| 13 |
Chain Kit, Drive (420-15& (06406-K0F-D10) |
Ed | €214.66 |
|
| 14 |
Chain, Drive (Did420D2-98 (40530-K0F-D11) |
Ed | €64.53 |
|
