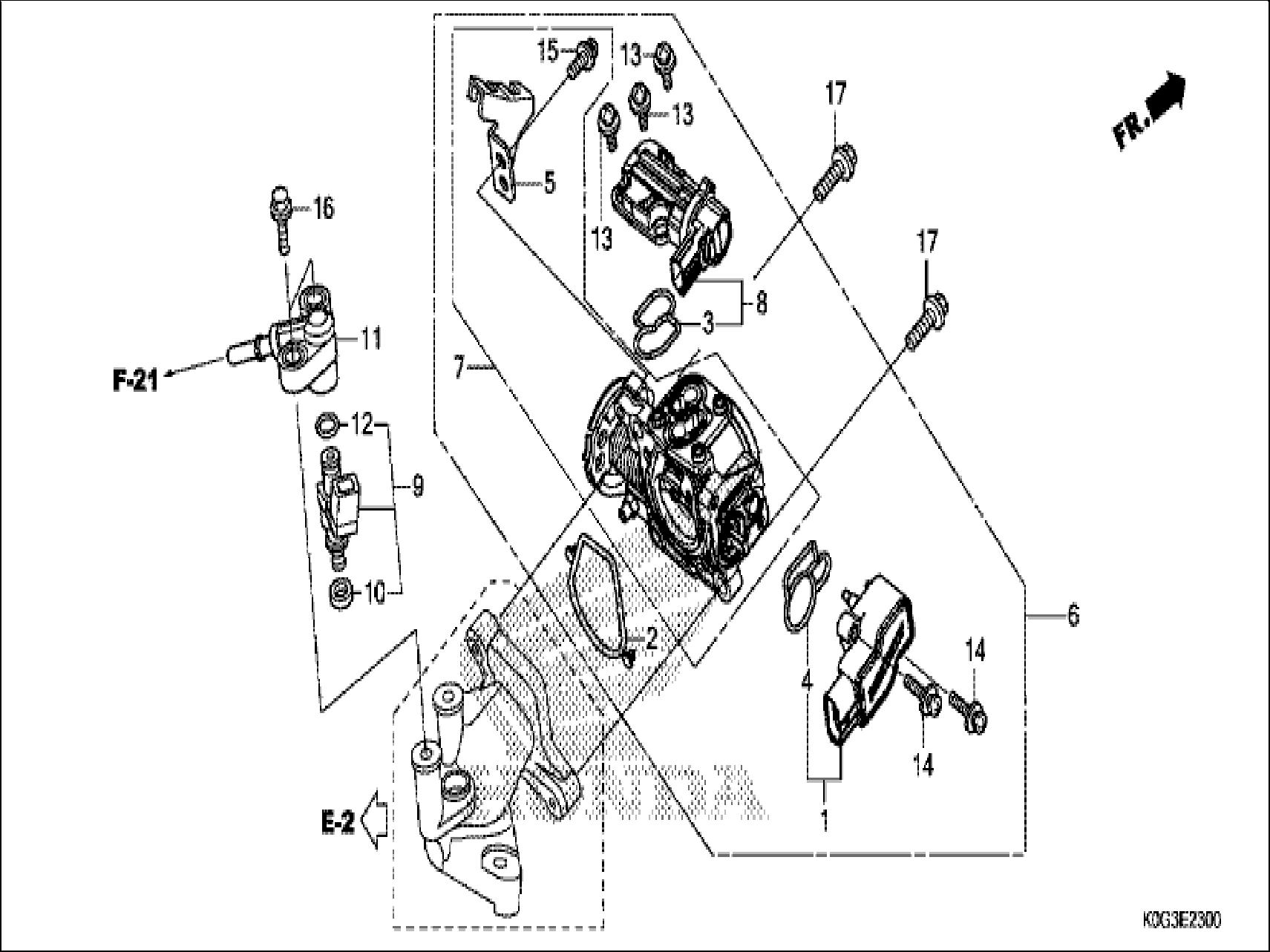

Honda C125K (2019) E-23 THROTTLE BODY
E-23 THROTTLE BODY
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Sensor Set (16060-K35-V01) |
V In | €160.83 |
|
| 2 |
O-RING, THROTTLE BODY (16075-K35-V01) |
V In | €4.07 |
|
| 3 |
O-Ring (16076-K35-V01) |
V In | €3.53 |
|
| 4 |
O-Ring (16077-K35-V01) |
V In | €2.85 |
|
| 5 |
Stay, Wire (16169-K18-901) |
V In | €16.45 |
|
| 6 |
Body Assy., Throttle (Gqy (16400-K0G-901) |
V In | €337.79 |
|
| 7 |
Body Set (16410-K0G-901) |
V In | €242.77 |
|
| 8 |
Valve Set, Idle Air Contr (16430-K0G-901) |
V In | €56.75 |
|
| 9 |
Injector Assy., Fuel (16450-K76-T61) |
V In | €127.62 |
|
| 10 |
Ring, Seal (16472-KPC-D50) |
V In | €2.35 |
|
| 11 |
Joint Comp., Injector (17560-K40-F00) |
V In | €16.95 |
|
| 12 |
O-Ring, 6.3X2.2 (91301-GGL-J01) |
V In | €11.62 |
|
| 13 |
Screw-Washer, 4X10 (93891-0401008) |
V In | €0.64 |
|
| 14 |
Screw-Washer, 4X16 (93891-0401608) |
V In | €0.75 |
|
| 15 |
Screw-Washer, 5X12 (93892-0501208) |
V In | €1.03 |
|
| 16 |
Bolt, Flange, 6X22 (95701-0602200) |
V In | €1.39 |
|
| 17 |
Bolt, Flange, 6X18 (96001-0601800) |
V In | €1.39 |
|
