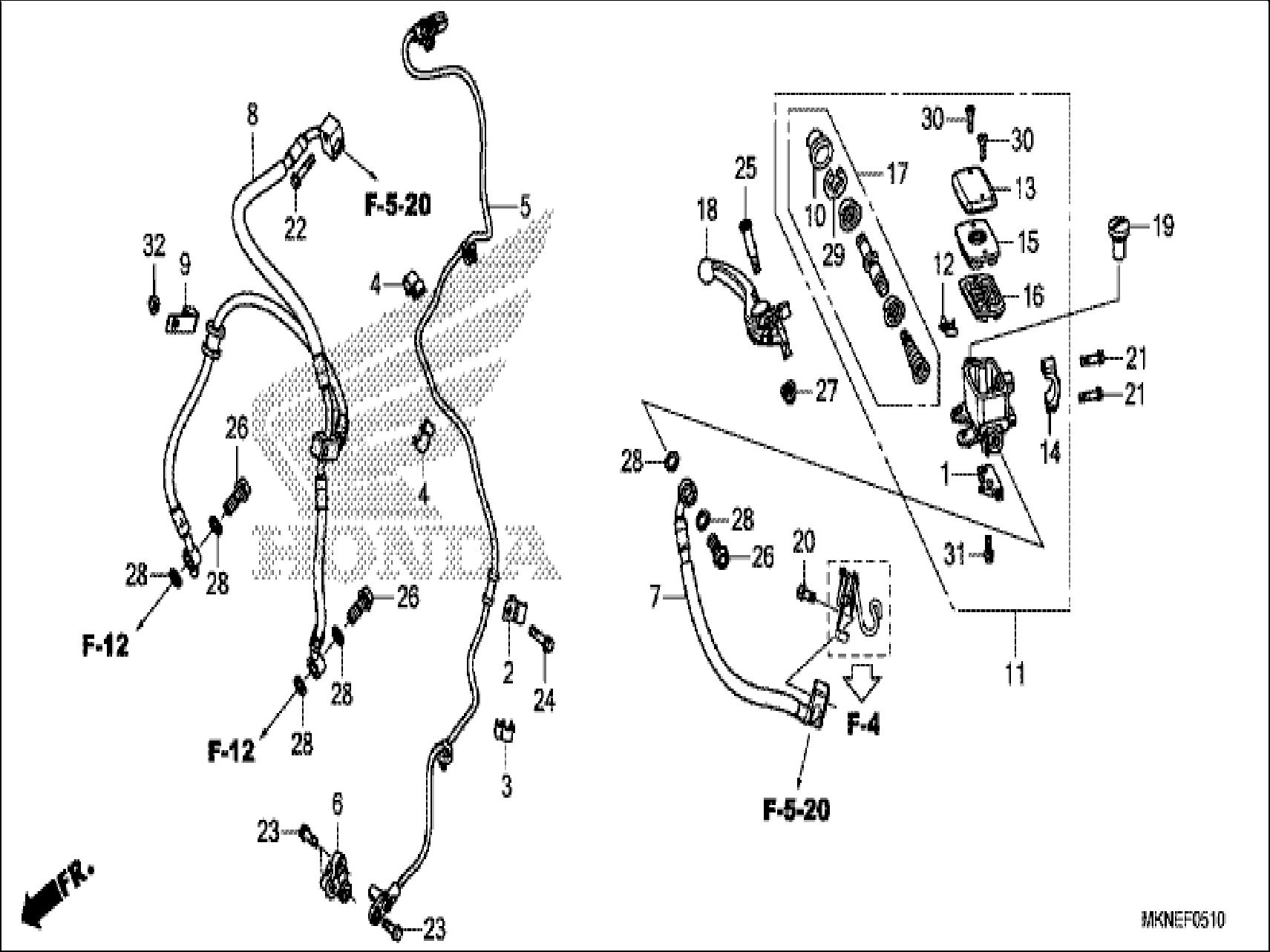

Honda CBR650RAK (2019) F-05-10 FRONT BRAKE MASTER CYLINDER

F-05-10 FRONT BRAKE MASTER CYLINDER
Ref. Description Area Price Quantity
1 Switch Assy., Fr. Stop (35340-MGS-D31)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €24.58
2 Clamper B, Sensor Cord (38514-MKH-D00)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €5.95
3 Clamp, Abs Cord (D8.5) (38516-MGE-003)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €5.89
4 Clamp, Abs Cord (D12) (38517-MGE-003)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €5.18
5 Sensor, Fr. Wheel Speed (38520-MKN-D11)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €277.59
6 Guard, Abs Sensor (38521-MKN-D50)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €9.03
7 Hose Comp. A, Fr. Brake (45124-MKN-D11)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €108.72
8 Hose Comp. D, Fr. Brake (45127-MKN-D51)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €210.81
9 Clamper, Fr. Brake Hose (45132-MKN-D50)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €7.64
10 Boot Comp. (45504-410-003)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €9.38
11 Cylinder Sub Assy., Fr. B (45510-MGH-641)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €329.78
12 Protector (45512-MA6-006)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €3.60
13 Cap, Master Cylinder (Nis (45513-MM5-016)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €28.11
14 Holder, Master Cylinder (45517-166-006)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €13.44
15 Plate, Diaphragm (45518-MM5-006)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €11.56
16 Diaphragm (45520-MM5-006)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €14.87
17 Cylinder Set, Master (45530-MA4-671)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €54.05
18 Lever Assy., R. Handle (53170-MJE-D01)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €97.49
19 Plug, Handle Lever Bracke (53174-116-670)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €2.29
20 Bolt, Flange, 6X12 (90013-GHB-610)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €3.46
21 Bolt, Flange, 6X22 (90013-GHB-660)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €3.46
22 Bolt, Flange, 6X25 (90013-GHB-670)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €3.46
23 Bolt, Flange, 6X16 (90111-MKN-D50)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €3.92
24 Bolt, Flange, 6X23.5 (90113-MKN-D50)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €6.14
25 Bolt, Handle Lever Pivot (90114-MA5-671)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €8.52
26 Bolt, Oil, 10X22 (Saga) (90145-MS9-612)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €9.63
27 Nut, Cap, 6Mm (90202-KCW-870)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €3.57
28 Washer, Oil Bolt (90545-300-000)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €2.53
29 Circlip (90651-MA5-671)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €2.25
30 Screw, Flat, 4X12 (93600-040120G)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €0.64
31 Screw-Washer, 4X12 (93893-0401207)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €0.64
32 Nut, Cap, 6Mm (94021-060700S)
 U Ma 3Ed 4Ed 2U Fo Ed Ko 2Ed 2Ma 2Fo 2Ko €1.50
