Honda CRF1000DK (2019) E-19-10 REDUCTION GEAR

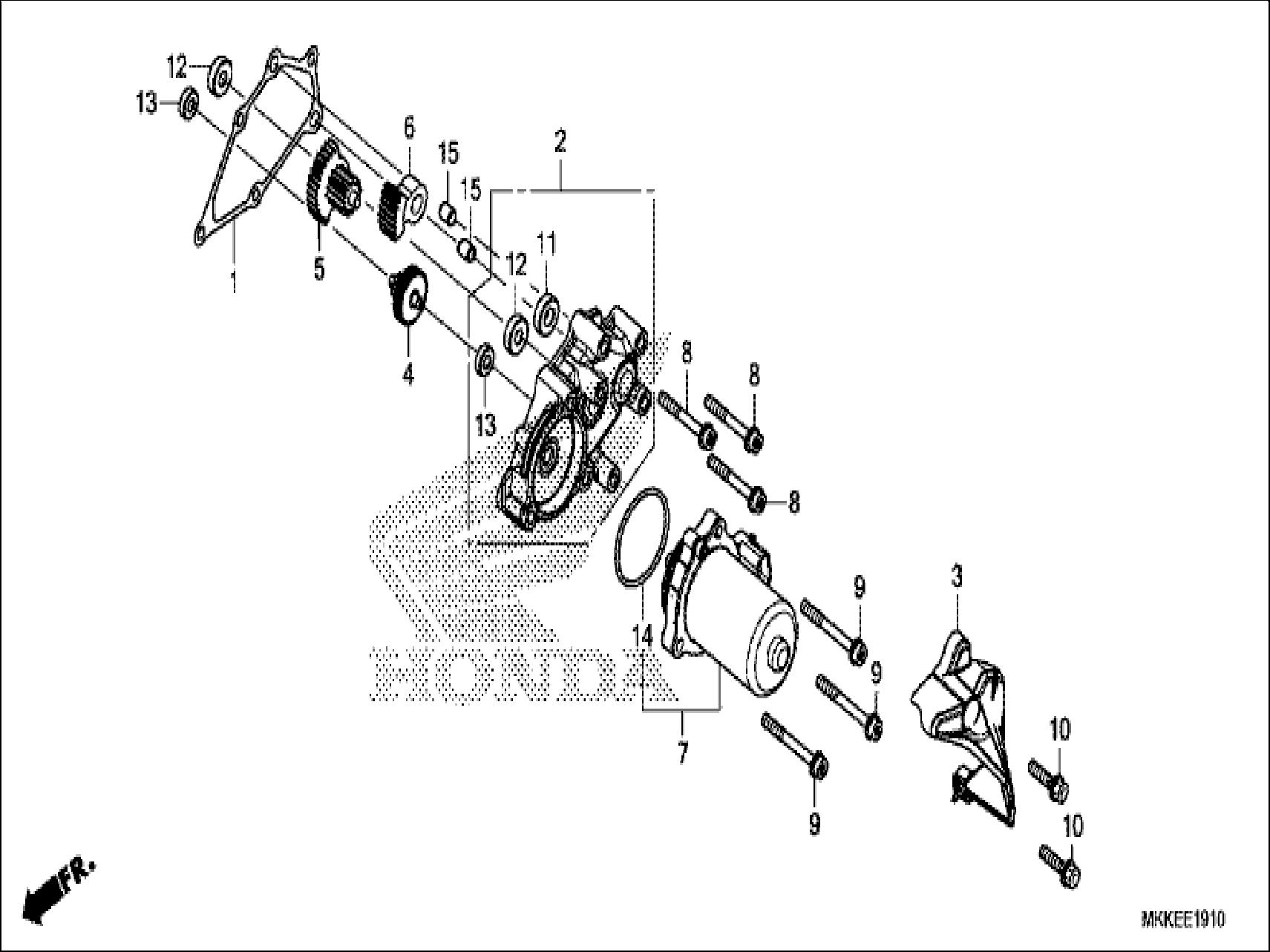

E-19-10 REDUCTION GEAR
Ref. Description Area Price Quantity
1 Gasket, Reduction Cover (11397-MJP-G81)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €17.37
2 Cover Comp., Reduction Ge (11520-MJP-G80)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €171.36
3 Cover Comp., Ratio Contro (11530-MJP-G80)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €48.87
4 Gear, Shift Reduction (45 (24615-MGE-D01)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €106.33
5 Gear, Shift Reduction (32 (24616-MGS-D21)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €71.23
6 Gear, Shift Reduction (42 (24617-MGE-D01)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €86.08
7 Motor Assy., Ratio Contro (31300-MJP-G81)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €559.77
8 Bolt, Flange Torx, 6X45 (90010-MJP-G80)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €7.42
9 Bolt, Flange Torx, 6X53 (90011-MJP-G80)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €6.46
10 Bolt, Flange, 6X25 (90026-GHB-680)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €3.89
11 Bearing, Radial Ball, 699 (91025-MGS-D21)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €17.16
12 Bearing, Radial Ball, 607 (91026-MGS-D21)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €15.23
13 Bearing, Radial Ball, 696 (91027-MGS-D21)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €13.52
14 O-Ring, Control Motor (91301-MJP-G81)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €3.92
15 Dowel Pin, 8X10 (94301-08100)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.29
