Honda CRF1000DK (2019) F-07 HANDLE BAR / TOP BRIDGE

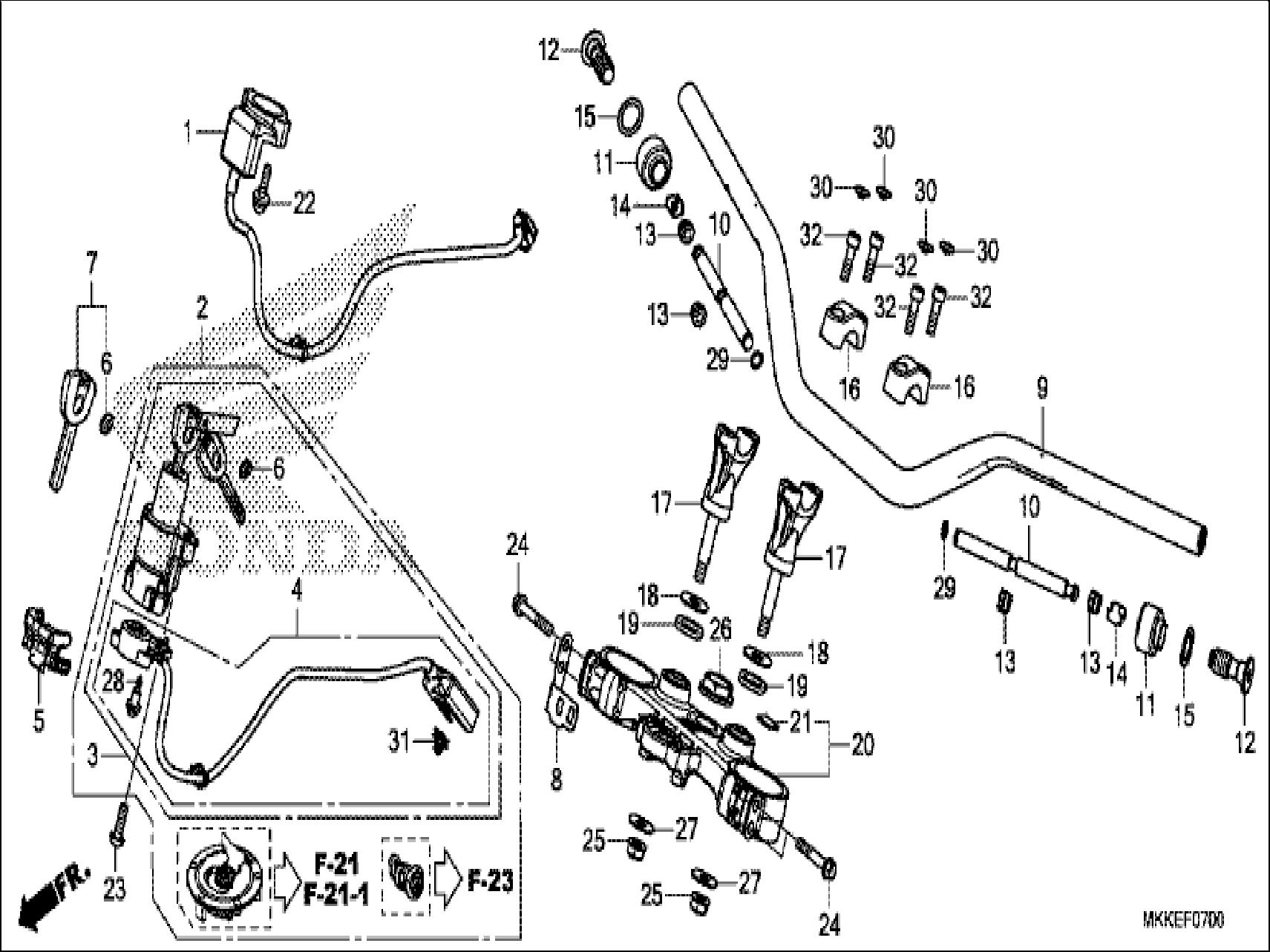

F-07 HANDLE BAR / TOP BRIDGE
Ref. Description Area Price Quantity
1 Set,Receiver Unit (30430-MKK-315)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €222.62
2 Key Set (35010-MKK-D00)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €719.29
3 Switch Assy., Combination (35100-MKK-D01)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €322.70
4 Base Comp., Contact (35101-MKK-D01)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €96.35
5 Guide, Cord (35105-MFJ-D01)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €6.96
6 Emblem, Key (35113-MJK-N20)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €4.71
7 Key, Blank (Immobi) (35121-MGP-D63)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €84.43
8 Stay, R. Harness Clip (35139-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €10.38
9 Pipe, Steering Handle (53100-MKK-DA0)
 Ko Gs Ed 2Gs 2Ko 2Ed €400.25
9 Pipe, Steering Handle (53100-MKK-D00)
 3Ko 3Ed 3Gs €427.58
10 Weight B, Steering Handle (53104-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €27.26
11 Weight A, Steering Handle (53105-MKK-D01ZC)
 Ko Gs 3Ko Ed 3Ed 3Gs €30.50
11 Weight A, Steering Handle (53105-MKK-D01ZA)
 2Gs 2Ko 2Ed €30.50
12 Bolt, Handle Weight (53106-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €22.00
13 Rubber, Handle Weight (53107-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €5.20
14 Ring, Handle Weight Snap (53108-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €5.14
15 Rubber, Knuckle Guard (53109-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.89
16 Holder, Handle Upper (53131-MJP-G80)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €79.54
17 Holder, Handle Lower (53132-MJP-G80)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €107.16
18 Washer, Handle Holder (53135-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.57
19 Rubber, Handle Holder (53136-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €3.10
20 Bridge Comp., Fork Top (53300-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €308.73
21 Emblem, Product (Uehara) (86150-KPG-902)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €3.39
21 Emblem, Product (Marui) (86150-KPG-901)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €3.39
22 Screw-Washer, 5X22 (90020-MBW-610)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €1.78
23 Bolt, One-Way, 8Mm (90107-MBG-000)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.57
24 Bolt, Flange, 8X45 (90109-MR7-000)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €4.96
25 Nut, U, Flange. 10Mm (90304-GBL-003)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €4.21
26 Nut, Steering Stem (90304-MJ4-670)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €10.63
27 Washer, Plain, 10Mm (90501-MJP-G50)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €4.39
28 Screw, Tapping, 3X16 (91059-KY2-711)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.74
29 O-RING, 9X1.8 (91305-GE1-920)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.71
30 Cap, Socket Bolt, 8Mm (91456-MW3-600)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €3.89
31 Clip, Coupler (Black) (91533-S82-003)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.74
32 Bolt, Socket, 8X28 (96600-0802810)
 Ko Gs 3Ko Ed 2Gs 3Ed 2Ko 3Gs 2Ed €2.50
