Honda CRF1000D2K (2019) F-43 FRONT COVER

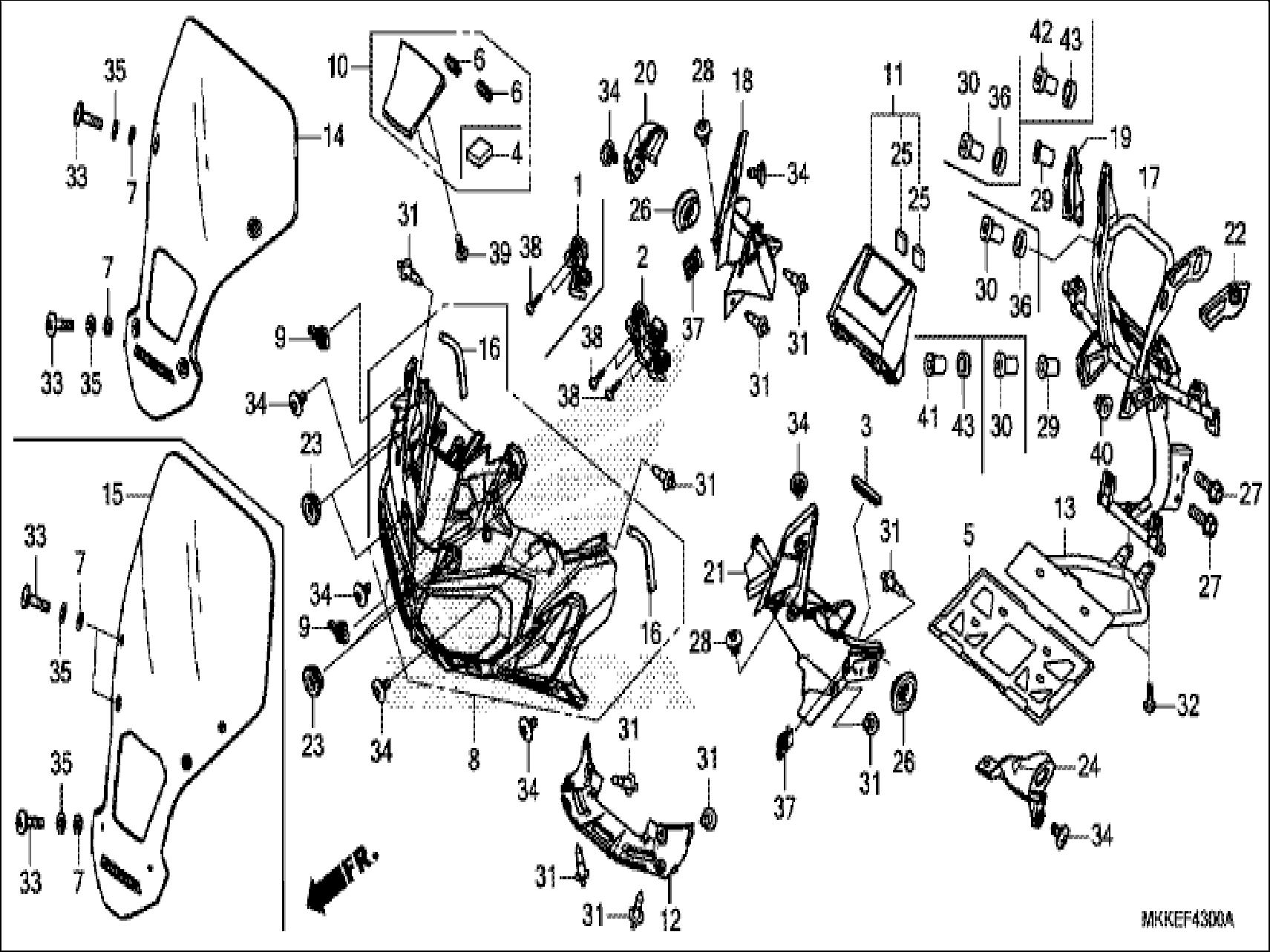

F-43 FRONT COVER
Ref. Description Area Price Quantity
2 Switch Assy., G Mode & Rr (35240-MJP-G81)
 4U 4Ko 4Ed 4Gs €107.91
4 Rubber, Fender Brace (61111-MFY-A00)
 4U 4Ko 4Ed 4Gs €2.42
6 Rubber, Protector (64121-MEJ-000)
 4U 4Ko 4Ed 4Gs €1.82
7 Washer, Screen Setting (64205-166-610)
 4U 4Ko 4Ed 4Gs €3.10
8 Cover Assy., Fr. (64211-MKK-D00)
 4U 4Ko 4Ed 4Gs €357.88
9 Clip, Twist (64213-MJN-A01)
 4U 4Ko 4Ed 4Gs €2.21
10 Cover, Fr. Upper (64215-MKK-D20)
 4U 4Ko 4Ed 4Gs €51.22
11 Cover, Meter (64218-MKK-D00)
 4U 4Ko 4Ed 4Gs €58.89
12 Spoiler, Fr. (64221-MJP-G50)
 4U 4Ko 4Ed 4Gs €32.18
15 Windscreen Set (Wl) *Type (64250-MKK-D20ZA)
 4U 4Ko 4Ed 4Gs €526.02
16 Seal B, Middle Cowl (64312-MJP-G50)
 4U 4Ko 4Ed 4Gs €3.64
17 Stay Comp., Fr. Cowl (64501-MKK-D00)
 4U 4Ko 4Ed 4Gs €513.05
18 Cover, R. Inner Panel (64531-MKK-D50)
 4U 4Ko 4Ed 4Gs €71.19
19 Cover, R. Cowl Stay (64532-MJP-G50)
 4U 4Ko 4Ed 4Gs €15.69
20 Cover, R. Fr. Winker (64541-MKK-D00)
 4U 4Ko 4Ed 4Gs €34.00
21 Cover, L. Inner Panel (64581-MKK-D00)
 4U 4Ko 4Ed 4Gs €63.38
22 Cover, L. Cowl Stay (64582-MJP-G50)
 4U 4Ko 4Ed 4Gs €15.69
24 Cover, L. Fr. Winker (64591-MKK-D00)
 4U 4Ko 4Ed 4Gs €33.28
25 Rubber, Garnish (67113-MCT-940)
 4U 4Ko 4Ed 4Gs €2.25
26 Grommet, Air Cleaner Case (83551-GE2-000)
 4U 4Ko 4Ed 4Gs €3.68
27 Bolt, Flange, 8X25 (90036-GHB-680)
 4U 4Ko 4Ed 4Gs €4.21
28 Bolt, Special, 6X8 (90106-MKK-D00)
 4U 4Ko 4Ed 4Gs €5.07
30 Nut, Well, 5Mm (90111-MGS-D70)
 4U 4Ko 4Ed 4Gs €4.71
31 Clip, Bumper Seal (90116-SP0-003)
 4U 4Ko 4Ed 4Gs €3.81
33 Screw, Pan, 5X20 (Sus) (90118-MJP-G50)
 4U 4Ko 4Ed 4Gs €3.64
34 Screw, Special, 5X11 (90122-MJK-N20)
 4U 4Ko 4Ed 4Gs €3.71
35 Washer, Thrust, 5Mm (90504-964-000)
 4U 4Ko 4Ed 4Gs €1.61
36 Washer, Screen (90507-MKK-D20)
 4U 4Ko 4Ed 4Gs €3.42
37 Nut, Clip, 5Mm (90677-KAN-T00)
 4U 4Ko 4Ed 4Gs €3.60
38 Screw, Tapping, 3X12 (93901-22320)
 4U 4Ko 4Ed 4Gs €0.86
39 Screw, Tapping, 4X10 (93903-24280)
 4U 4Ko 4Ed 4Gs €0.68
40 Nut, Flange, 8Mm (94050-08070)
 4U 4Ko 4Ed 4Gs €1.50
