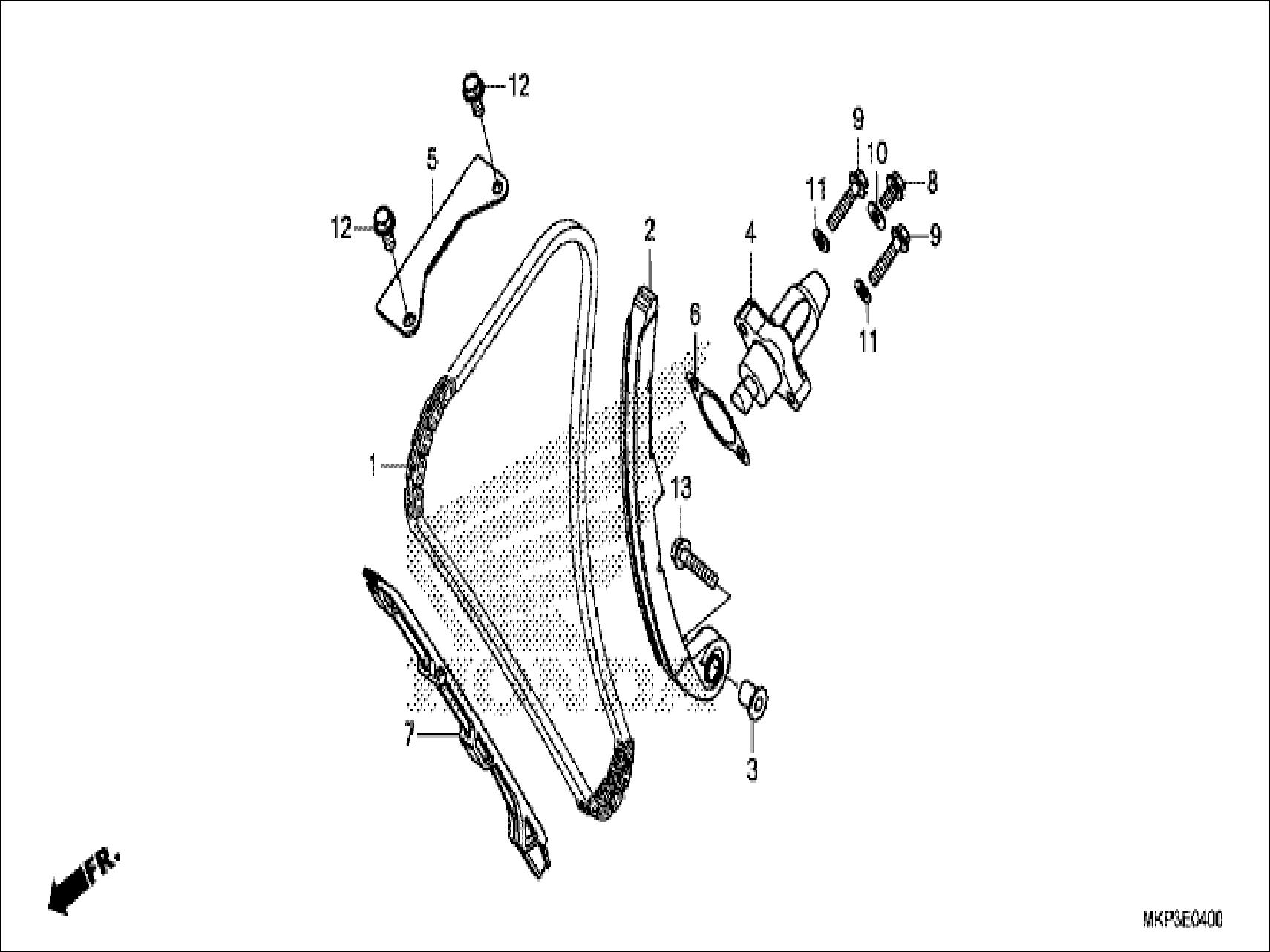

Honda CBR500RAK (2019) E-04 CAM CHAIN / TENSIONER
E-04 CAM CHAIN / TENSIONER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Chain, Cam (130L) (Daido) (14401-MGZ-J01) |
U Ed In Fo Ko Ma | €89.61 |
|
| 2 |
Tensioner Comp., Cam Chai (14510-MGZ-J01) |
U Ed In Fo Ko Ma | €141.44 |
|
| 3 |
Collar, Tensioner (14517-MGZ-J00) |
U Ed In Fo Ko Ma | €7.38 |
|
| 4 |
Lifter Assy., Tensioner ( (14520-MGZ-J01) |
U Ed In Fo Ko Ma | €110.01 |
|
| 5 |
Guide B, Cam Chain (14546-KYJ-900) |
U Ed In Fo Ko Ma | €18.44 |
|
| 6 |
Gasket, Tensioner Hole (14560-MGZ-J01) |
U Ed In Fo Ko Ma | €6.53 |
|
| 7 |
Guide A, Cam Chain (14611-MGZ-J00) |
U Ed In Fo Ko Ma | €62.31 |
|
| 8 |
Bolt, Flange, 6X10 (Nshf) (90004-GHB-600) |
U Ed In Fo Ko Ma | €3.68 |
|
| 9 |
Bolt, Flange, 6X25 (Nshf) (90004-GHB-670) |
U Ed In Fo Ko Ma | €2.14 |
|
| 10 |
Washer, Sealing, 6Mm (90442-397-000) |
U Ed In Fo Ko Ma | €2.46 |
|
| 11 |
Washer, Sealing, 6Mm (90463-MEE-000) |
U Ed In Fo Ko Ma | €2.57 |
|
| 12 |
Bolt, Flange, 6X14 (95701-0601400) |
U Ed In Fo Ko Ma | €1.03 |
|
| 13 |
Bolt, Flange, 6X28 (95801-0602800) |
U Ed In Fo Ko Ma | €1.22 |
|
