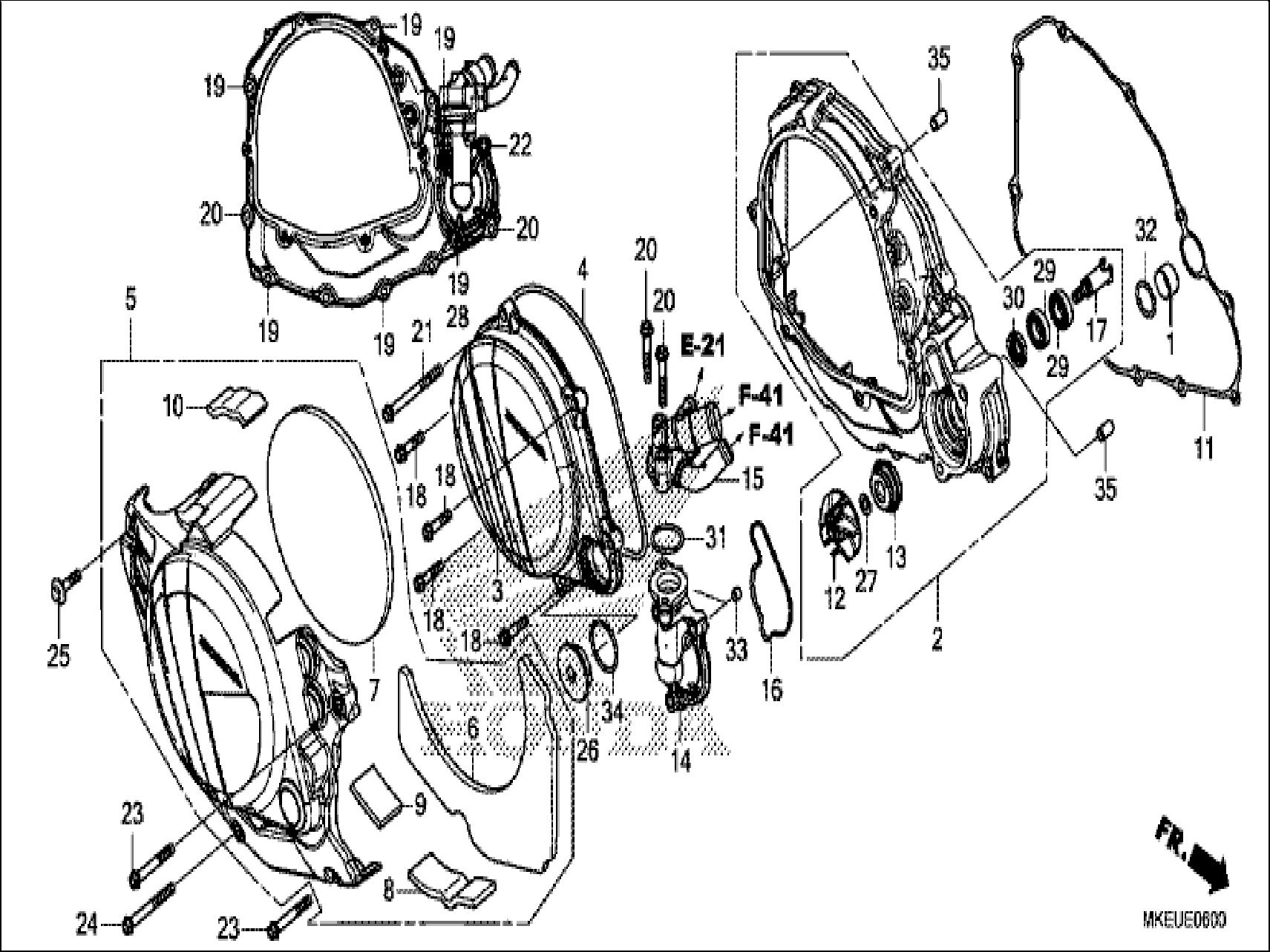

Honda CRF450LK (2019) E-06 RIGHT CRANKCASE COVER / WATER PUMP

E-06 RIGHT CRANKCASE COVER / WATER PUMP
Ref. Description Area Price Quantity
1 Collar, Water Pass (11102-MKE-A00)
 U Ed €5.39
2 Cover Assy., R. Crankcase (11330-MKE-A50)
 U Ed €532.38
3 Cover, Clutch (11351-MKE-A50)
 U Ed €127.98
4 Gasket, Clutch Cover (11352-MKE-A70)
 U Ed €15.09
5 Over Cover Comp., R. Cran (11360-MKE-A50)
 U Ed €142.29
6 Mat A, R. Cover (11365-MKE-A50)
 U Ed €9.07
7 Mat B, R. Cover (11366-MKE-A50)
 U Ed €11.17
8 Mat C, R. Cover (11367-MKE-A50)
 U Ed €2.68
9 Mat D, R. Cover (11368-MKE-A50)
 U Ed €1.39
10 Mat E, R. Cover (11369-MKE-A50)
 U Ed €2.42
11 Gasket, R. Cover (11394-MKE-A71)
 U Ed €38.81
12 Impeller, Water Pump (19215-MEN-850)
 U Ed €38.81
13 Seal, Mechanical (19217-KRN-A61)
 U Ed €82.04
14 Cover, Water Pump (19221-MKE-A50)
 U Ed €82.08
15 Joint Comp., Four Way Wat (19225-MKE-A50)
 U Ed €86.43
16 Gasket, Water Pump (19226-MKE-A00)
 U Ed €6.67
17 Shaft, Water Pump (19241-MKE-A50)
 U Ed €64.00
18 Bolt, Flange, 6X25 (90020-GHB-680)
 U Ed €4.07
19 Bolt, Flange, 6X28 (90020-GHB-690)
 U Ed €3.17
20 Bolt, Flange, 6X35 (90020-GHB-720)
 U Ed €3.53
21 Bolt, Flange, 6X65 (90020-GHB-790)
 U Ed €4.03
22 Bolt, Flange, 6X75 (90020-GHB-810)
 U Ed €4.28
23 Bolt, Flange, 6X45 (90025-GHB-750)
 U Ed €3.57
24 Bolt, Flange, 6X55 (90025-GHB-770)
 U Ed €3.75
25 Bolt, Flange, 6X25 (90041-MKE-A50)
 U Ed €3.75
26 Cap, 30Mm (90087-MKE-A50)
 U Ed €17.72
27 Washer, Sealing, 7Mm (90447-KE1-000)
 U Ed €2.89
28 Washer, Sealing, 6Mm (90430-PD6-003)
 U Ed €4.39
29 Bearing, Ball, 12X24X6 (91002-MEN-A31)
 U Ed €19.51
30 Oil Seal, 12X22X5 (91201-965-000)
 U Ed €4.67
31 O-Ring, 2.4X24.5 (91301-MKE-A50)
 U Ed €3.00
32 O-Ring, 2.4X19 (91302-MKE-A70)
 U Ed €2.25
33 Dowel Pin, 8X7 (91320-KE1-000)
 U Ed €3.68
34 O-Ring, 29.7X2.4 (Nok) (91356-425-005)
 U Ed €3.42
35 Dowel Pin, 8X14 (94301-08140)
 U Ed €1.75
