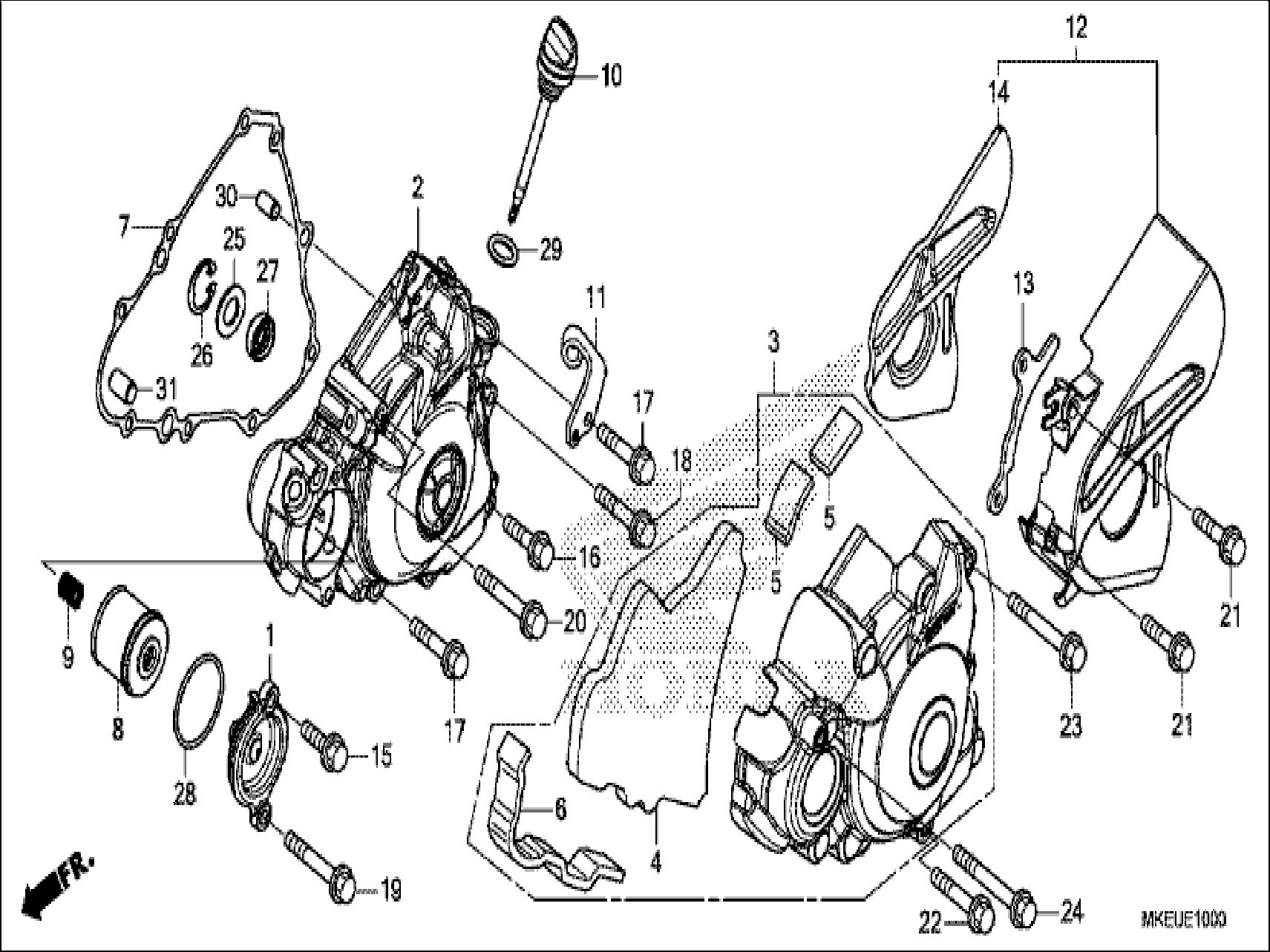

| 1 |
Cover, Oil Filter (11333-MKE-A00)
|
U
Ed
|
€35.39
|
|
| 2 |
Cover Comp., L. Crankcase (11340-MKE-A50)
|
U
Ed
|
€371.12
|
|
| 3 |
Over Cover Comp., L. Cran (11370-MKE-A50)
|
U
Ed
|
€107.37
|
|
| 4 |
Mat A, L. Cover (11376-MKE-A50)
|
U
Ed
|
€8.28
|
|
| 5 |
Mat B, L. Cover (11377-MKE-A50)
|
U
Ed
|
€1.39
|
|
| 6 |
Mat C, L. Cover (11378-MKE-A50)
|
U
Ed
|
€5.28
|
|
| 7 |
Gasket, L. Cover (11395-MKE-A01)
|
U
Ed
|
€18.94
|
|
| 8 |
Filter Comp., Engine Oil (15412-MEN-671)
|
U
Ed
|
€17.72
|
|
| 9 |
Spring, Oil Filter (15414-MEB-670)
|
U
Ed
|
€4.17
|
|
| 10 |
Gauge, Oil Level (15651-MKE-A50)
|
U
Ed
|
€13.63
|
|
| 11 |
Receiver, Clutch Cable (22838-MKE-A00)
|
U
Ed
|
€14.10
|
|
| 12 |
Cover Comp., Drive Sprock (23810-MKE-A50)
|
U
Ed
|
€33.36
|
|
| 13 |
Guide, Drive Chain (23812-MKE-A50)
|
U
Ed
|
€16.05
|
|
| 14 |
Rubber Comp., Drive Sproc (23813-MKE-A50)
|
U
Ed
|
€41.94
|
|
| 15 |
Bolt, Flange, 6X18 (90020-GHB-650)
|
U
Ed
|
€2.89
|
|
| 16 |
Bolt, Flange, 6X25 (90020-GHB-680)
|
U
Ed
|
€4.07
|
|
| 17 |
Bolt, Flange, 6X35 (90020-GHB-720)
|
U
Ed
|
€3.53
|
|
| 18 |
Bolt, Flange, 6X40 (90020-GHB-740)
|
U
Ed
|
€3.75
|
|
| 19 |
Bolt, Flange, 6X50 (90020-GHB-760)
|
U
Ed
|
€3.75
|
|
| 20 |
Bolt, Flange, 6X55 (90020-GHB-770)
|
U
Ed
|
€4.03
|
|
| 21 |
Bolt, Flange, 6X30 (90021-GHB-700)
|
U
Ed
|
€3.10
|
|
| 22 |
Bolt, Flange, 6X45 (90025-GHB-750)
|
U
Ed
|
€3.57
|
|
| 23 |
Bolt, Flange, 6X60 (90025-GHB-780)
|
U
Ed
|
€3.75
|
|
| 24 |
Bolt, Flange, 6X65 (90025-GHB-790)
|
U
Ed
|
€3.75
|
|
| 25 |
Washer, 13X24X1.6 (90401-MEY-670)
|
U
Ed
|
€3.46
|
|
| 26 |
Circlip, Special Internal (90602-MEB-670)
|
U
Ed
|
€4.03
|
|
| 27 |
Oil Seal, 10X21X5 (91204-MEN-A31)
|
U
Ed
|
€6.27
|
|
| 28 |
O-Ring, 39.8X2.2 (Arai) (91302-PA9-003)
|
U
Ed
|
€4.49
|
|
| 29 |
D-Ring, 14X3 (91307-KRN-A41)
|
U
Ed
|
€6.10
|
|
| 30 |
Dowel Pin, 8X14 (94301-08140)
|
U
Ed
|
€1.75
|
|
| 31 |
Dowel Pin, 10X16 (94301-10160)
|
U
Ed
|
€2.07
|
|
