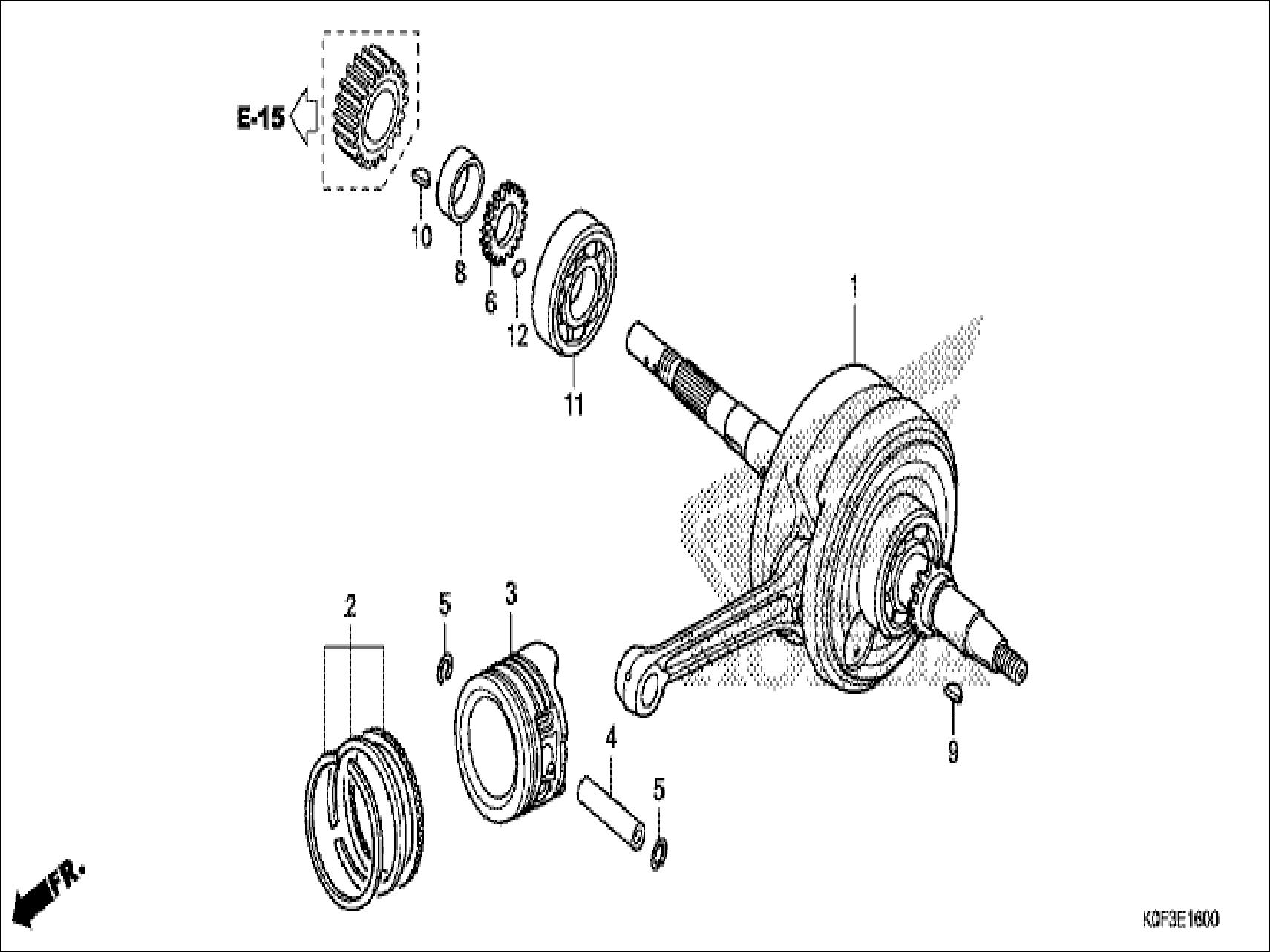

Honda Z125MK (2019) E-16 CRANKSHAFT / PISTON
E-16 CRANKSHAFT / PISTON
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Crankshaft Comp. (13000-K26-B00) |
V | €516.33 |
|
| 2 |
Ring Set, Piston (Std.) ( (13012-KYZ-900) |
V | €48.15 |
|
| 2 |
Ring Set, Piston (1.00) ( (13052-KYZ-900) |
V | €48.15 |
|
| 2 |
Ring Set, Piston (0.75) ( (13042-KYZ-900) |
V | €48.15 |
|
| 2 |
Ring Set, Piston (0.50) ( (13032-KYZ-900) |
V | €48.15 |
|
| 2 |
Ring Set, Piston (0.25) ( (13022-KYZ-900) |
V | €48.15 |
|
| 3 |
Piston (0.75) (13104-KYZ-901) |
V | €67.60 |
|
| 3 |
Piston (13101-KYZ-900) |
V | €67.60 |
|
| 3 |
Piston (1.00) (13105-KYZ-901) |
V | €67.60 |
|
| 3 |
Piston (0.25) (13102-KYZ-901) |
V | €67.60 |
|
| 3 |
Piston (0.50) (13103-KYZ-901) |
V | €67.60 |
|
| 4 |
Pin, Piston (13111-GB0-910) |
V | €6.81 |
|
| 5 |
Clip, Piston Pin, 13Mm (13115-GN5-910) |
V | €2.18 |
|
| 6 |
Gear, Oil Pump Drive (19T (15341-KPH-900) |
V | €7.92 |
|
| 8 |
Collar, Primary Driven (23125-KPG-T00) |
V | €9.48 |
|
| 9 |
Key, Woodruff, 25X14X4 (90701-HB6-010) |
V | €2.53 |
|
| 10 |
Key, Woodruff, 4Mm (90741-KGH-900) |
V | €2.71 |
|
| 11 |
Bearing, Radial Ball, 63/ (91001-KWS-901) |
V | €20.22 |
|
| 12 |
Dowel Pin, 3X5 (94303-03050) |
V | €1.71 |
|
