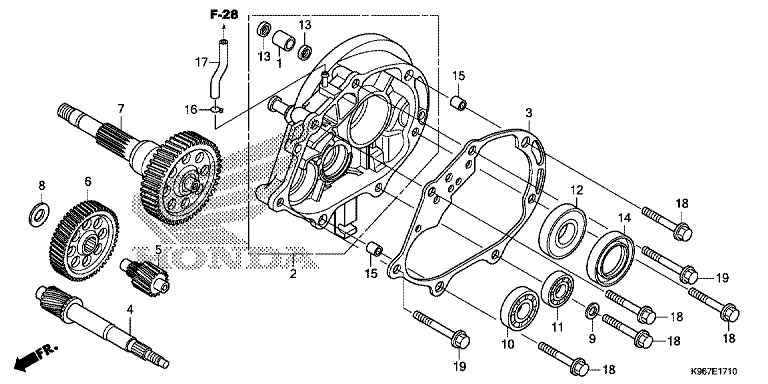

Honda WW125AK (2019) E-17-10 TRANSMISSION
E-17-10 TRANSMISSION
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Sleeve, Rr. Brake Cam (11204-KGF-900) |
ED | €12.41 |
|
| 2 |
CASE COMP., TRANSMISSION (21200-K97-T00) |
ED | €104.80 |
|
| 3 |
GASKET, TRANSMISSION CASE (NICHIAS) (21395-K97-T02) |
ED | €9.82 |
|
| 4 |
SHAFT, DRIVE (16T) (23411-K96-V01) |
ED | €80.65 |
|
| 5 |
SHAFT, COUNTER (14T) (23421-K96-V01) |
ED | €48.15 |
|
| 6 |
GEAR, COUNTER (53T) (23422-K96-V01) |
ED | €51.05 |
|
| 7 |
GEAR COMP., FINAL (45T) (23430-K96-V01) |
ED | €144.35 |
|
| 8 |
WASHER, SPECIAL, 12MM (90452-KGH-900) |
ED | €1.61 |
|
| 9 |
Washer, Sealing, 8Mm (90495-MN5-000) |
ED | €2.57 |
|
| 10 |
Bearing, Radial Ball, 620 (91004-KZR-601) |
ED | €15.30 |
|
| 11 |
Bearing, Radial Ball, 620 (91006-KZR-601) |
ED | €15.30 |
|
| 12 |
Bearing, Radial Ball, 620 (91009-KWN-901) |
ED | €18.76 |
|
| 13 |
Oil Seal, 14X20X3.2 (Arai (91201-434-003) |
ED | €5.71 |
|
| 14 |
OIL SEAL, 34X52X7 (NOK) (91204-K59-A11) |
ED | €10.20 |
|
| 15 |
Dowel Pin, 10X12 (94301-10120) |
ED | €2.07 |
|
| 16 |
Clip, Tube (C9) (95002-50000) |
ED | €0.64 |
|
| 17 |
TUBE, 5X75 (95005-5007530) |
ED | €15.81 |
|
| 18 |
Bolt, Flange, 8X45 (95701-0804500) |
ED | €1.64 |
|
| 19 |
Bolt, Flange, 8X55 (95701-0805500) |
ED | €2.57 |
|
