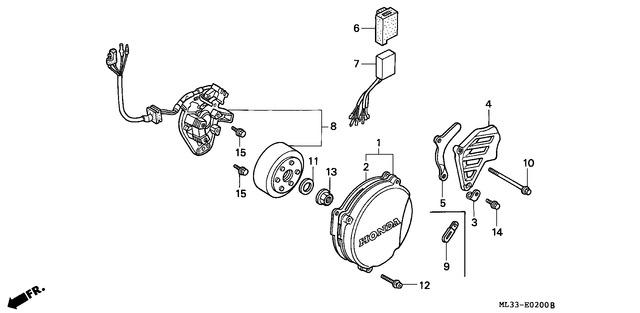

Honda CR500RM (1991) E-02 LEFT CRANKCASE COVER / GENERATOR
E-02 LEFT CRANKCASE COVER / GENERATOR
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Discontinued (90437-611-000) |
|
||
| 2 |
Gasket, L. Cover (11352-KA5-690) |
Cm / Cmf | €5.28 |
|
| 3 |
Clamp, Over Flow Pipe (16236-045-010) |
Cm / Cmf | €3.00 |
|
| 4 |
Discontinued (90437-611-000) |
|
||
| 5 |
Guide, Drive Chain (23812-KA4-740) |
Cm / Cmf | €28.03 |
|
| 6 |
Suspension, C.D.I. Unit (30401-ML3-681) |
Cm / Cmf | €10.66 |
|
| 7 |
Limited Quantity Available Please Contact Us (30410-ML3-681) |
|
||
| 8 |
Limited Quantity Available Please Contact Us (31100-ML3-911) |
|
||
| 10 |
Bolt,Flange,Sh 6X (96001-0611507) |
Cm / Cmf | €3.10 |
|
| 11 |
Washer, Plain, 12Mm (90437-611-000) |
Cm / Cmf | €1.78 |
|
| 12 |
Screw-Washer, 6X28 (93891-0602807) |
Cm / Cmf | €0.92 |
|
| 13 |
Nut, Flange, 12Mm (94050-12000) |
Cm / Cmf | €1.99 |
|
| 14 |
Bolt, Flange, 6X32 (96001-0603207) |
Cm / Cmf | €1.93 |
|
| 15 |
Bolt, Flange, 6X18 (96300-0601800) |
Cm / Cmf | €1.14 |
|
