Honda GL1500AM (1991) F-06 CLUTCH MASTER CYLINDER

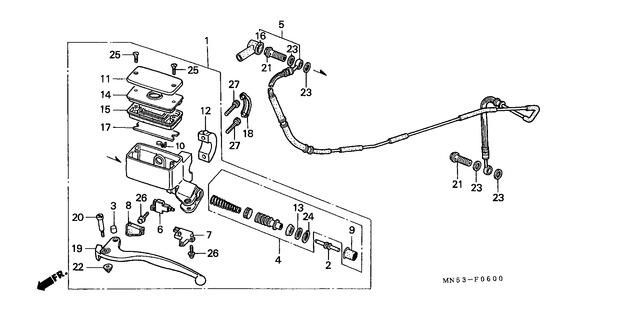

F-06 CLUTCH MASTER CYLINDER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Limited Quantity Available Please Contact Us (22880-MN5-006) |
|
||
| 2 |
Rod, Push (22884-MB0-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €21.44 |
|
| 3 |
Bush (22885-MB0-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €8.81 |
|
| 4 |
Piston Set, Clutch Master (22886-MB4-305) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €71.84 |
|
| 5 |
Hose Comp., Clutch (22900-MAM-A80) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €150.68 |
|
| 6 |
Switch Assy., Clutch (35330-MB0-003) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €22.90 |
|
| 7 |
Switch Assy., Clutch Crui (35335-MG9-951) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €22.90 |
|
| 8 |
Limited Quantity Available Please Contact Us (35359-MN5-000) |
|
||
| 9 |
Boot Comp. (45504-410-003) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €9.38 |
|
| 10 |
Protector (45512-MA6-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €3.60 |
|
| 11 |
Cap, Master Cylinder (45513-MAM-A61) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €24.26 |
|
| 12 |
Holder, Master Cylinder ( (45517-MN5-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €11.66 |
|
| 13 |
Plate, Stopper (45518-MB0-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €3.42 |
|
| 14 |
Plate, Diaphragm (45518-MM5-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €11.56 |
|
| 15 |
Diaphragm (45520-MM5-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €14.87 |
|
| 16 |
Boot, Master Cylinder (45522-422-000) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €7.42 |
|
| 17 |
Float, Fr. Master Cylinde (45523-MN5-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €5.31 |
|
| 18 |
Cap, Brake Master Cylinde (45553-MAM-A60) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €4.53 |
|
| 19 |
Lever Comp., L. Handle (53178-MN5-006) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €27.39 |
|
| 20 |
Bolt, Handle Lever (90114-MG9-951) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €6.85 |
|
| 21 |
Bolt, Oil, 10X22 (Saga) (90145-MS9-612) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €9.63 |
|
| 22 |
Nut, Cap, 6Mm (90202-ZV0-000) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €5.14 |
|
| 23 |
Washer, Oil Bolt (90545-300-000) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €2.53 |
|
| 24 |
Circlip, Internal, 18Mm (90651-377-003) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €2.18 |
|
| 25 |
Screw, Flat, 4X12 (93600-040120G) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €0.64 |
|
| 26 |
Screw-Washer, 4X12 (93893-0401207) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €0.64 |
|
| 27 |
Bolt, Socket, 6X20 (96600-0602017) |
Sp / Kph U / Kph Sd / Kph B / Kph N / Kph | €1.57 |
|
