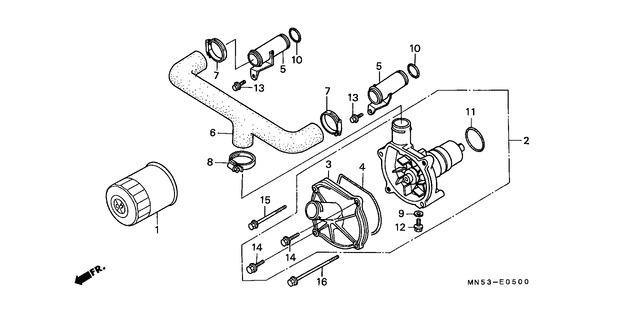

Honda GL1500SEM (1991) E-05 OIL FILTER / WATER PUMP
E-05 OIL FILTER / WATER PUMP
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Oil Filter Cartri (15410-MCJ-505) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €15.41 |
|
| 2 |
Pump Assy,Water (19200-MN5-040) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €277.44 |
|
| 3 |
Discontinued (90430-PD6-003) |
|
||
| 4 |
Gasket, Water Pump Cover (19226-MN5-000) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €4.46 |
|
| 5 |
Pipe, Water In. (19411-MN5-000) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €30.75 |
|
| 6 |
Hose, Water In. (19414-MN5-000) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €37.66 |
|
| 7 |
Clamp, Water Hose (19503-MB1-870) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €13.23 |
|
| 8 |
Clamp, Water Hose (19515-MJ4-670) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €12.69 |
|
| 9 |
Washer, Sealing, 6Mm (90430-PD6-003) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €4.39 |
|
| 10 |
O-Ring,18.3X2.3 (91301-147-023) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €2.89 |
|
| 11 |
O-Ring, 32.95X2.62 (Arai) (91302-MB0-013) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €4.28 |
|
| 12 |
Bolt, Flange, 6X12 (95701-0601208) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €1.03 |
|
| 13 |
Bolt, Flange, 6X14 (95701-0601408) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €1.03 |
|
| 14 |
Bolt, Flange, 6X25 (95701-0602508) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €1.54 |
|
| 15 |
Bolt, Flange, 6X60 (95701-0606008) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €2.03 |
|
| 16 |
Bolt, Flange, 6X95 (95701-0609508) |
Sw / Kph F / Kph Yb B / Kph It / Kph Ar / Kph E / Mkh Fi / Kph G / Kph | €2.03 |
|
