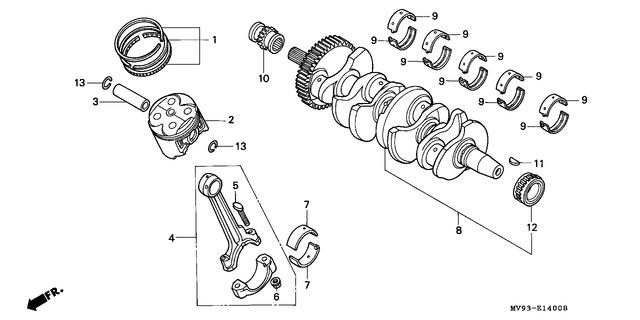

Honda CBR600FM (1991) E-14 CRANKSHAFT / PISTON
E-14 CRANKSHAFT / PISTON
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Ring Set, Piston (Std.) ( (13011-MV9-305) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €53.65 |
|
| 1 |
Limited Quantity Available Please Contact Us (13051-MV9-305) |
|
||
| 1 |
Limited Quantity Available Please Contact Us (13041-MV9-305) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (13101-MV9-760) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (13109-MV9-305) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (13105-MV9-305) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (13104-MV9-305) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (13107-MV9-305) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 3 |
Pin, Piston (13111-MV9-670) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.87 |
|
| 4 |
Discontinued (14312-MAT-000) |
|
||
| 5 |
Discontinued (14312-MAT-000) |
|
||
| 6 |
Nut, Connecting Rod (13215-MV9-670) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €4.17 |
|
| 7 |
Bearing B, Connecting Rod (13225-MN4-003) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.59 |
|
| 7 |
Bearing C, Connecting Rod (13226-MN4-003) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.59 |
|
| 7 |
Bearing A, Connecting Rod (13224-MN4-003) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.59 |
|
| 8 |
Limited Quantity Available Please Contact Us (13300-MV9-670) |
|
||
| 9 |
Bearing A, Crankshaft (Br (13313-MV9-630) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.59 |
|
| 9 |
Limited Quantity Available Please Contact Us (13316-MN4-003) |
|
||
| 9 |
Bearing C, Crankshaft (Ye (13315-MV9-630) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.59 |
|
| 9 |
Bearing B, Crankshaft (Gr (13314-MV9-630) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €13.59 |
|
| 10 |
Sprocket, Timing (17T) (14312-MAT-000) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €62.50 |
|
| 11 |
Key, Woodruff, 25X14 (90741-413-000) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €3.25 |
|
| 12 |
Bearing, Needle, 28X41X21 (91021-MV9-671) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €82.72 |
|
| 13 |
Clip, Piston Pin, 17Mm (94601-17000) |
Sw / Kph G / Kph 27P Ed / Kph 50P Ar / Kph F / Kph Yb G / Kph 50P E / Kph G / Kph Mx / Kph Sp / Kph | €0.68 |
|
