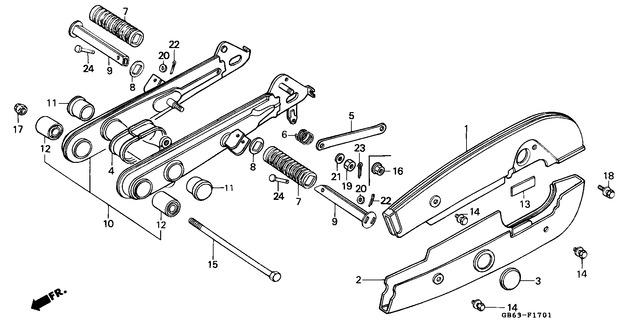

Honda C90MN (1992) F-17-01 REAR FORK / CHAIN CASE (C90E/MF/G/MG/N/MN)

F-17-01 REAR FORK / CHAIN CASE (C90E/MF/G/MG/N/MN)
Ref. Description Area Price Quantity
1 Discontinued
(94101-08000)
2 Case, Drive Chain Under H (40520-GK4-600ZF)
 E / Sel Ssw €72.90
3 Cap, Chain Case Peep Hole (40545-001-000)
 E / Sel Ssw €5.50
4 Packing, Drive Chain Case (40591-041-000)
 E / Sel Ssw €5.46
5 Link, Rr. Brake Torque (43431-086-720)
 E / Sel Ssw €8.13
6 Spring, Stopper Arm (43434-250-000)
 E / Sel Ssw €3.14
7 Rubber,Step (50716-371-660)
 E / Sel Ssw €13.87
8 Washer, Pillion Step (50712-377-000)
 E / Sel Ssw €5.14
9 Discontinued
(94101-08000)
10 Swingarm Assy. *Yr118Ms * (52000-GB6-761ZC)
 E / Sel Ssw €203.11
11 Cap, Cross Member Side (52161-051-000)
 E / Sel Ssw €2.82
12 Bush, Rr. Fork Pivot Rubb (52181-001-300)
 E / Sel Ssw €6.42
13 Discontinued
(94101-08000)
14 Bolt-Washer, 6X6 (90118-383-000)
 E / Sel Ssw €3.39
15 Bolt Rr Pivot (90120-046-810)
 E / Sel Ssw €16.44
17 Nut, Self-Lock, 10Mm (90351-268-000)
 E / Sel Ssw €3.10
18 Bolt-Washer, 6X10 (93401-0601000)
 E / Sel Ssw €0.86
19 Nut, Hex., 8Mm (94001-080000S)
 E / Sel Ssw €0.82
20 Washer, Plain, 6Mm (94101-06000)
 E / Sel Ssw €0.47
21 Washer, Plain, 8Mm (94101-08000)
 E / Sel Ssw €0.64
22 Pin, Split, 1.6X15 (94201-16150)
 E / Sel Ssw €0.64
23 Pin, Split, 2.0X15 (94201-20150)
 E / Sel Ssw €0.68
24 Pin A, Pillion Step (95015-81000)
 E / Sel Ssw €3.75
