Honda CB250R (1994) F-21 REAR SWINGARM / CHAIN CASE

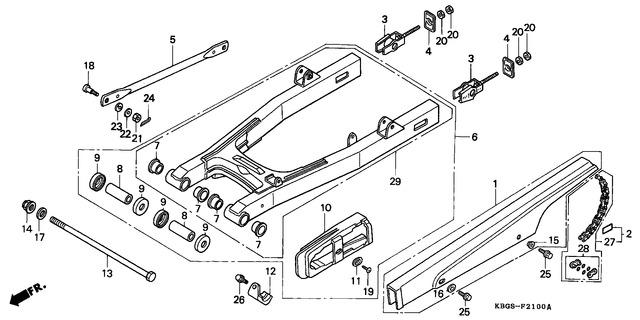

F-21 REAR SWINGARM / CHAIN CASE
Ref. Description Area Price Quantity
1 Case, Drive Chain (40510-KC1-000)
 Sp / Spo Po Sp H F B €61.56
2 Chain,Drive Rk520 (40540-KPM-306)
 Sp / Spo Po Sp H F B €146.53
2 Chain, Drive (Daido) (Did (40540-KV3-405)
 Sp / Spo Po Sp H F B €194.29
3 Adjuster, Chain (40543-KK4-010)
 Sp / Spo Po Sp H F B €33.25
4 Retainer, Chain Adjuster (40546-GZ4-670)
 Sp / Spo Po Sp H F B €11.17
5 Arm, Rr. Brake Stopper (43431-413-010)
 Sp / Spo Po Sp H F B €19.34
6 Limited Quantity Available
Please Contact Us
(52100-KBG-940)
7 Bush, Rr. Fork (52109-KC1-003)
 Sp / Spo Po Sp H F B €12.67
8 Collar, R. Swingarm (52141-356-010)
 Sp / Spo Po Sp H F B €48.19
9 Dust Seal, 31X40.5X7.1 (N (52144-GC4-005)
 Sp / Spo Po Sp H F B €9.74
10 Slider, Chain (52170-KBG-000)
 Sp / Spo Po Sp H F B €40.10
11 Washer, Chain Slider (52171-KR6-000)
 Sp / Spo Po Sp H F B €2.57
12 Slider, Chain Lower (52175-GM7-700)
 Sp / Spo Po Sp H F B €11.45
13 Bolt, Swingarm Pivot (90121-KB4-000)
 Sp / Spo Po Sp H F B €27.15
14 Nut, U, 14Mm (90305-GE8-003)
 Sp / Spo Po Sp H F B €5.71
15 Washer, 6X20 (90512-KF9-900)
 Sp / Spo Po Sp H F B €2.35
16 Washer, 6X9 (90513-405-000)
 Sp / Spo Po Sp H F B €2.57
17 Washer, Rr. Fork Pivot Bo (90526-268-000)
 Sp / Spo Po Sp H F B €3.04
18 Bolt A, Brake Stopper Arm (92812-20000)
 Sp / Spo Po Sp H F B €3.00
19 Screw, Tapping, 5X12 (93901-25280)
 Sp / Spo Po Sp H F B €0.57
20 Nut, Hex., 6Mm (94001-062000S)
 Sp / Spo Po Sp H F B €0.86
21 Nut, Hex., 8Mm (94001-080000S)
 Sp / Spo Po Sp H F B €0.82
22 Washer, Plain, 8Mm (94101-08000)
 Sp / Spo Po Sp H F B €0.64
23 Washer, Spring, 10Mm (94111-10000)
 Sp / Spo Po Sp H F B €0.68
24 Pin, Split, 2.0X15 (94201-20150)
 Sp / Spo Po Sp H F B €0.68
25 Bolt, Flange, 6X10 (95701-0601007)
 Sp / Spo Po Sp H F B €1.14
26 Bolt, Flange, 6X14 (95701-0601407)
 Sp / Spo Po Sp H F B €1.03
