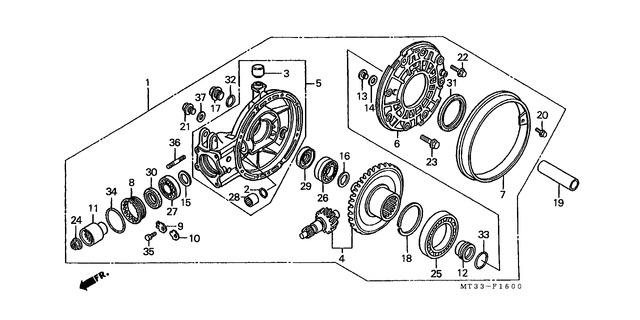

Honda ST1100R (1994) F-16 FINAL DRIVEN GEAR (ST1100L / M/N/P/R)
F-16 FINAL DRIVEN GEAR (ST1100L / M/N/P/R)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Limited Quantity Available Please Contact Us (41300-MY3-000) |
|
||
| 2 |
Ring, Stopper (41305-MB4-770) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €5.24 |
|
| 3 |
Cap, Breather (41306-MB0-020) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €14.70 |
|
| 4 |
Gear Set, Final (41310-MT3-305) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €594.23 |
|
| 5 |
Limited Quantity Available Please Contact Us (41311-MT3-305) |
|
||
| 6 |
Cover, Gear Case (41321-MN5-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €248.51 |
|
| 7 |
Discontinued (41510-MB0-003) |
|
||
| 8 |
Retainer, Bearing (41331-MN5-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €109.08 |
|
| 9 |
Lock B, Bearing Adjusting (41333-415-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €2.18 |
|
| 10 |
Lock A, Bearing Adjusting (41332-415-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €2.18 |
|
| 11 |
Joint, Pinion (41410-MN5-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €123.66 |
|
| 12 |
Holder, O-Ring (41433-MG9-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €9.13 |
|
| 13 |
Pin, Ring Gear Stopper (41436-MB0-310) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €20.30 |
|
| 14 |
Shim B, Stopper Pin (0.15 (41438-MB0-310) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €4.17 |
|
| 14 |
Shim A, Stopper Pin (0.10 (41437-MB0-310) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €4.17 |
|
| 15 |
Shim A, Pinion Gear (1.32 (41450-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim B, Pinion Gear (1.35 (41451-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim H, Pinion Gear (1.53 (41457-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim C, Pinion Gear (1.38 (41452-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim J, Pinion Gear (1.59 (41459-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim K, Pinion Gear (1.62 (41460-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim D, Pinion Gear (1.41 (41453-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim L, Pinion Gear (1.65 (41461-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim I, Pinion Gear (1.56 (41458-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim M, Pinion Gear (1.68 (41462-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim E, Pinion Gear (1.44 (41454-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim F, Pinion Gear (1.47 (41455-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 15 |
Shim G, Pinion Gear (1.50 (41456-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €10.27 |
|
| 16 |
Washer, Special, 35X40 (41510-MB0-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €8.63 |
|
| 17 |
Cap, Gear Case Oil (41511-ME5-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €6.85 |
|
| 18 |
Shim E, Ring Gear (1.94) (41534-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim C, Ring Gear (1.88) (41532-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim F, Ring Gear (1.97) (41535-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim H, Ring Gear (2.03) (41537-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim D, Ring Gear (1.91) (41533-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim B, Ring Gear (1.85) (41531-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim A, Ring Gear (1.82) (41530-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim I, Ring Gear (2.06) (41538-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim J, Ring Gear (2.09) (41539-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim K, Ring Gear (2.12) (41540-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim L, Ring Gear (2.15) (41541-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim M, Ring Gear (2.18) (41542-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim N, Ring Gear (2.21) (41543-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim O, Ring Gear (2.24) (41544-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim P, Ring Gear (2.27) (41545-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim Q, Ring Gear (2.30) (41546-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 18 |
Shim G, Ring Gear (2.00) (41536-MT3-610) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €19.41 |
|
| 19 |
Collar, Rr. Distance (B) (42625-MT3-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €17.72 |
|
| 20 |
Bolt, Flange, 6X12 (Ct200 (90013-883-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €3.46 |
|
| 21 |
Bolt, Plug, (90081-MC7-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €11.56 |
|
| 22 |
Bolt, Flange, 8X27 (90133-MB0-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €8.39 |
|
| 23 |
Bolt, Flange, 10X35 (90134-HA0-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €7.88 |
|
| 24 |
Nut, Hex., 16Mm (90381-MT3-000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €6.67 |
|
| 25 |
Bearing, Radial Ball, 65X (91051-MN5-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €80.97 |
|
| 26 |
Bearing, Radial Ball, 35X (91052-MN5-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €39.67 |
|
| 27 |
Bearing, Radial Ball (Qj3 (91061-MT3-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €118.99 |
|
| 28 |
Limited Quantity Available Please Contact Us (91062-MG9-013) |
|
||
| 29 |
Oil Seal, 35X54X8 (Nok) (91261-MY3-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €11.41 |
|
| 30 |
Limited Quantity Available Please Contact Us (91262-MY3-003) |
|
||
| 31 |
Oil Seal, 65X85X7 (Nok) (91265-MY3-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €12.73 |
|
| 32 |
O-Ring, 30.8Mm (91302-001-020) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €3.68 |
|
| 33 |
O-Ring, 39.5X2.4 (Arai) (91356-MG9-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €4.03 |
|
| 34 |
O-Ring, 64.5X3.5 (Arai) (91359-MG9-003) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €5.78 |
|
| 35 |
Bolt, Hex., 6X12 (92101-060120A) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €0.86 |
|
| 36 |
Limited Quantity Available Please Contact Us (92900-100320E) |
|
||
| 37 |
Washer, Drain Plug, 14Mm (94109-14000) |
U / Kph Ed / Kph G / Kph F / Kph Nd / Kph Sp / Kph Cm / Kph Ar / Kph E / Mkh | €0.57 |
|
