Honda RVF750RR (1994) F-15 FUEL TANK

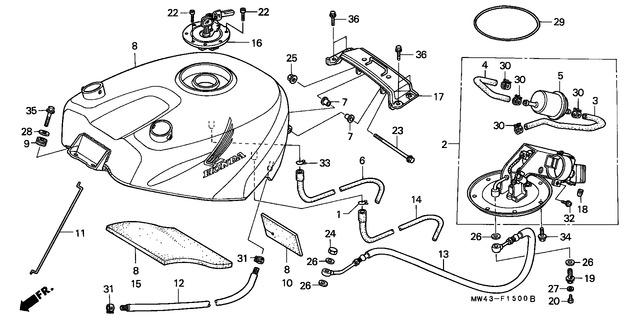

F-15 FUEL TANK
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cir Clip (15772-500-010) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €2.85 |
|
| 2 |
Pump Unit, Fuel (16700-MW4-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €742.08 |
|
| 3 |
Hose, Fuel Pump (A) (16711-MW4-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €25.97 |
|
| 4 |
Discontinued (90430-PD6-003) |
|
||
| 5 |
Discontinued (90430-PD6-003) |
|
||
| 6 |
Limited Quantity Available Please Contact Us (16956-MW4-000) |
|
||
| 7 |
Cushion, Fuel Tank Pivot (17506-MB1-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €4.82 |
|
| 8 |
Discontinued (90430-PD6-003) |
|
||
| 9 |
Discontinued (90430-PD6-003) |
|
||
| 10 |
Discontinued (90430-PD6-003) |
|
||
| 11 |
Discontinued (90430-PD6-003) |
|
||
| 12 |
Discontinued (90430-PD6-003) |
|
||
| 13 |
Limited Quantity Available Please Contact Us (17527-MW4-000) |
|
||
| 14 |
Discontinued (90430-PD6-003) |
|
||
| 15 |
Mat, Fuel Tank (17570-MW4-300) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €33.53 |
|
| 16 |
Cap Comp,Fuelfill (17620-MT4-040) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €203.47 |
|
| 17 |
Plate, Seat Cross (50202-MW4-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €107.33 |
|
| 18 |
Rubber C, Stopper (50355-434-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €4.71 |
|
| 19 |
Bolt, Banjo, 12Mm (90008-PP4-E02) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €12.02 |
|
| 20 |
Bolt, Sealing, 6Mm (90009-PP4-E01) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €5.03 |
|
| 22 |
Bolt, Socket, 4X21 (90074-MT4-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €2.89 |
|
| 23 |
Bolt, Tank Hinge (90135-MS2-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €4.67 |
|
| 24 |
Nut A, Sealing, 12Mm (90201-PD1-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €2.85 |
|
| 25 |
Nut, U, 6Mm (Fuse Rashi) (90301-473-003) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €5.20 |
|
| 26 |
Washer, Sealing, 12Mm (90428-PD6-003) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €2.93 |
|
| 27 |
Washer, Sealing, 6Mm (90430-PD6-003) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €4.39 |
|
| 28 |
Washer, Air Duct (90506-500-000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €2.07 |
|
| 29 |
Discontinued (90430-PD6-003) |
|
||
| 30 |
Clamp, Tube (D12) (91405-PD1-004) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €4.78 |
|
| 31 |
Clamp, Fuel Hose, 15.5Mm (91406-SL0-931) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €6.63 |
|
| 32 |
Screw-Washer, 4X12 (93893-0401208) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €0.64 |
|
| 33 |
Clip, Tube (B12) (95002-02120) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €0.82 |
|
| 34 |
Bolt, Flange, 6X18 (95701-0601808) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €1.39 |
|
| 35 |
Bolt, Flange, 6X32 (96001-0603200) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €1.64 |
|
| 36 |
Bolt, Flange, 6X20 (96300-0602000) |
H / Kph Cm / Kph Ar / Kph E / Mkh Ed / Kph F / Kph Sw / Kph G / Kph It / Kph | €1.14 |
|
