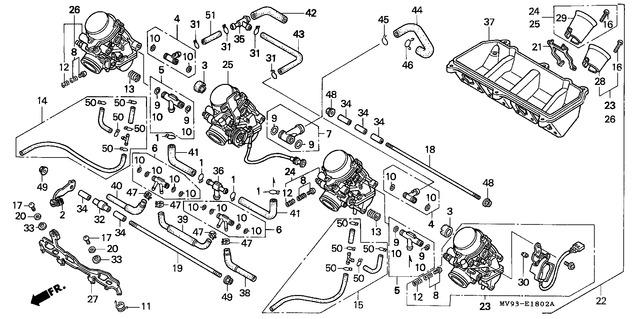

Honda CBR600FS (1995) E-18-02 CARBURETOR ASSY. (CBR600FS / 3S/T/3T/SET)
E-18-02 CARBURETOR ASSY. (CBR600FS / 3S/T/3T/SET)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Clip, Breather Tube (15772-292-010) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €2.50 |
|
| 2 |
Limited Quantity Available Please Contact Us (16019-MAL-600) |
|
||
| 3 |
Joint (16024-KAZ-000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €16.73 |
|
| 4 |
Discontinued (16085-MV4-000) |
|
||
| 5 |
Joint Set (16024-MZ2-E00) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €34.92 |
|
| 6 |
Discontinued (16085-MV4-000) |
|
||
| 7 |
Joint Set (16027-MAL-E00) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €36.89 |
|
| 8 |
Screw Set (16028-MZ2-E00) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €33.49 |
|
| 9 |
Gasket Set C (16039-MZ1-790) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €47.37 |
|
| 10 |
Gasket Set (16040-MAL-600) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €21.48 |
|
| 11 |
Discontinued (16085-MV4-000) |
|
||
| 12 |
Spring, Compression Coil (16052-KG4-003) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €6.38 |
|
| 13 |
Spring, Compression Coil (16053-MA6-003) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €8.71 |
|
| 14 |
Discontinued (16085-MV4-000) |
|
||
| 15 |
Limited Quantity Available Please Contact Us (16067-MAL-600) |
|
||
| 16 |
Screw, Pan, 4X16 (16080-KAZ-000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €2.14 |
|
| 17 |
Screw, Truss, 4X8 (16081-KAZ-000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €2.53 |
|
| 18 |
Bolt (16083-MV9-670) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €17.01 |
|
| 19 |
Limited Quantity Available Please Contact Us (16084-MW0-670) |
|
||
| 20 |
Washer, Plain (16085-MV4-000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €2.21 |
|
| 21 |
Discontinued (16085-MV4-000) |
|
||
| 22 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 22 |
Limited Quantity Available Please Contact Us (16100-MAL-600) |
|
||
| 22 |
Limited Quantity Available Please Contact Us (16100-MAL-610) |
|
||
| 22 |
Limited Quantity Available Please Contact Us (16100-MAL-730) |
|
||
| 22 |
Limited Quantity Available Please Contact Us (16100-MAL-780) |
|
||
| 23 |
Limited Quantity Available Please Contact Us (16101-MAL-610) |
|
||
| 23 |
Limited Quantity Available Please Contact Us (16101-MAL-600) |
|
||
| 23 |
Limited Quantity Available Please Contact Us (16101-MAL-780) |
|
||
| 23 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 23 |
Limited Quantity Available Please Contact Us (16101-MAL-730) |
|
||
| 24 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 24 |
Limited Quantity Available Please Contact Us (16102-MAL-600) |
|
||
| 24 |
Limited Quantity Available Please Contact Us (16102-MAL-610) |
|
||
| 24 |
Limited Quantity Available Please Contact Us (16102-MAL-730) |
|
||
| 24 |
Limited Quantity Available Please Contact Us (16102-MAL-780) |
|
||
| 25 |
Limited Quantity Available Please Contact Us (16103-MAL-610) |
|
||
| 25 |
Limited Quantity Available Please Contact Us (16103-MAL-600) |
|
||
| 25 |
Limited Quantity Available Please Contact Us (16103-MAL-730) |
|
||
| 25 |
Limited Quantity Available Please Contact Us (16103-MAL-780) |
|
||
| 25 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 26 |
Limited Quantity Available Please Contact Us (16104-MAL-600) |
|
||
| 26 |
Limited Quantity Available Please Contact Us (16104-MAL-610) |
|
||
| 26 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 26 |
Limited Quantity Available Please Contact Us (16104-MAL-730) |
|
||
| 26 |
Limited Quantity Available Please Contact Us (16104-MAL-780) |
|
||
| 27 |
Limited Quantity Available Please Contact Us (16120-MAL-600) |
|
||
| 28 |
Funnel, Air (16141-MAL-600) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €22.87 |
|
| 29 |
Limited Quantity Available Please Contact Us (16142-MAL-600) |
|
||
| 30 |
Joint, Connector (16145-MZ2-780) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €15.66 |
|
| 31 |
Clip, Tube (16163-GHB-610) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €1.93 |
|
| 32 |
Collar (16172-MBZ-610) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €16.76 |
|
| 33 |
Collar (16175-MZ1-000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €21.40 |
|
| 34 |
Dowel Pin, 7.9X20 (16178-MAS-600) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €7.64 |
|
| 35 |
Limited Quantity Available Please Contact Us (16180-MAL-600) |
|
||
| 36 |
T-Joint (16180-MM5-601) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €40.23 |
|
| 37 |
Limited Quantity Available Please Contact Us (16188-MAL-600) |
|
||
| 37 |
Limited Quantity Available Please Contact Us (16188-MAL-770) |
|
||
| 38 |
Limited Quantity Available Please Contact Us (16191-MAL-600) |
|
||
| 39 |
Discontinued (16085-MV4-000) |
|
||
| 40 |
Discontinued (16085-MV4-000) |
|
||
| 41 |
Tube, Fuel (16195-MV9-670) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €12.31 |
|
| 42 |
Discontinued (16085-MV4-000) |
|
||
| 43 |
Tube (16197-MAL-600) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €8.81 |
|
| 44 |
Limited Quantity Available Please Contact Us (16198-MAL-600) |
|
||
| 45 |
Clip B, Tube (17366-MJ0-000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €1.67 |
|
| 46 |
Clip, Air Hose, 19 (18533-634-670) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €4.96 |
|
| 47 |
Clamp, Fuel Hose (D10.5) (91406-SL4-931) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €3.28 |
|
| 48 |
Nut, Flange, 5Mm (94050-05000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €0.90 |
|
| 49 |
Nut, Flange, 6Mm (94050-06000) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €1.14 |
|
| 50 |
Clip, Tube (B1 8) (95002-02089) |
Sw / Kph U / Kph Sp / Kph G / Kph 34P Mx / Kph Ko / Kph Po / Kph 34P E / Mkh G / Kph 98P Ed / Kph F / Kph G / Kph 50P Ar / Kph Br / Kph | €0.86 |
|
| 51 |
Limited Quantity Available Please Contact Us (95005-7008050) |
|
