Honda NX650T (1996) E-02 CYLINDER HEAD

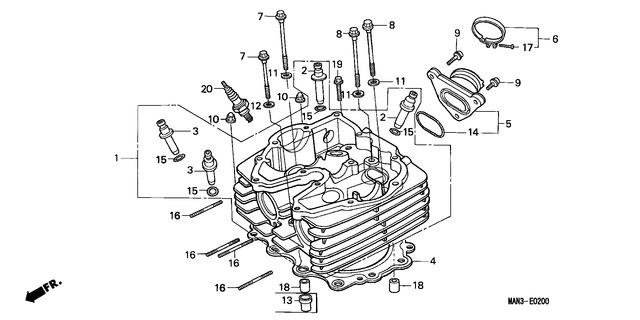

E-02 CYLINDER HEAD
Ref. Description Area Price Quantity
1 Limited Quantity Available
Please Contact Us
(12200-MAN-850)

1 Head Comp., Cylinder (12200-MAN-690)
Nd €1,186.53
1 Limited Quantity Available
Please Contact Us
(12200-MAN-680)

2 Guide, In. Valve (Os) (12231-MG2-306)
It Ed It / 25P Nd €18.02
3 Guide, Ex. Valve (Os) (12241-MG2-306)
It Ed It / 25P Nd €18.02
4 Gasket, Cylinder Head (12251-MN9-742)
It Ed It / 25P Nd €33.49
5 Insulator, Carburetor (16211-MAN-620)
Nd €71.81
6 Discontinued
(90502-MN9-000)

7 Bolt,Flange,9X83 (90081-MN9-000)
It Ed It / 25P Nd €12.60
8 Bolt,Flange,9X110 (90082-MN9-000)
It Ed It / 25P Nd €12.06
9 Bolt, Flange Socket, 6X25 (90080-MG8-000)
It Ed It / 25P Nd €4.03
10 Nut, Cap, 6Mm (90201-415-000)
It Ed It / 25P Nd €3.75
11 Washer,Plain,9Mm (90501-MN1-670)
It Ed It / 25P Nd €3.04
12 Washer,Plain,9Mm (90502-MN9-000)
It Ed It / 25P Nd €5.74
14 O-Ring,Special (91301-MK4-601)
It Ed It / 25P Nd €10.17
15 O-Ring, 10X1.6 (91301-200-000)
It Ed It / 25P Nd €2.50
16 Bolt, Stud, 8X25 (92900-080250B)
It Ed It / 25P Nd €2.21
17 Screw, Pan, 5X28 (93500-050280G)
It Ed It / 25P Nd €0.60
18 Dowel Pin, 12X20 (94301-12200)
It Ed It / 25P Nd €1.97
19 Bolt, Flange, 6X32 (96001-0603200)
It Ed It / 25P Nd €1.64
20 Plug, Spark (Dpr8Ea-9) (N (98069-58916)
It Ed It / 25P Nd €12.02
20 Plug, Spark (X24Epr-U9) ( (98069-58926)
It Ed It / 25P Nd €12.02
