Honda GL1500SET (1996) F-17 FINAL DRIVEN GEAR

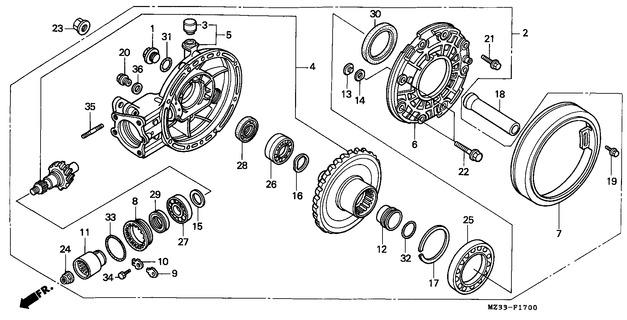

F-17 FINAL DRIVEN GEAR
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Cap, Tappet Adjusting Hol (12361-035-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €5.31 |
|
| 2 |
Limited Quantity Available Please Contact Us (41300-MZ3-000) |
|
||
| 3 |
Cap, Breather (41306-MB0-020) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €14.70 |
|
| 4 |
Gear Set, Final (41310-MN5-305) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €545.43 |
|
| 5 |
Limited Quantity Available Please Contact Us (41311-MN5-305) |
|
||
| 6 |
Cover, Gear Case (41321-MN5-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €248.51 |
|
| 7 |
Discontinued (41510-MB0-003) |
|
||
| 8 |
Retainer, Bearing (41331-MN5-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €109.08 |
|
| 9 |
Lock A, Bearing Adjusting (41332-415-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €2.18 |
|
| 10 |
Lock B, Bearing Adjusting (41333-415-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €2.18 |
|
| 11 |
Joint, Pinion (41410-MN5-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €123.66 |
|
| 12 |
Holder, O-Ring (41433-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €9.13 |
|
| 13 |
Pin, Ring Gear Stopper (41436-MB0-310) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €20.30 |
|
| 14 |
Shim A, Stopper Pin (0.10 (41437-MB0-310) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €4.17 |
|
| 14 |
Shim B, Stopper Pin (0.15 (41438-MB0-310) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €4.17 |
|
| 15 |
Shim C, Pinion Gear (1.44 (41452-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 15 |
Shim D, Pinion Gear (1.50 (41453-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 15 |
Shim E, Pinion Gear (1.56 (41454-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 15 |
Shim F, Pinion Gear (1.62 (41455-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 15 |
Shim G, Pinion Gear (1.68 (41456-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 15 |
Shim B, Pinion Gear (1.38 (41451-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 15 |
Shim A, Pinion Gear (1.32 (41450-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.49 |
|
| 16 |
Washer, Special, 35X40 (41510-MB0-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €8.63 |
|
| 17 |
Spacer D, Ring Gear (2.00 (41533-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer A, Ring Gear (1.82 (41530-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer B, Ring Gear (1.88 (41531-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer E, Ring Gear (2.06 (41534-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €13.48 |
|
| 17 |
Spacer F, Ring Gear (2.12 (41535-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer G, Ring Gear (2.18 (41536-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer H, Ring Gear (2.24 (41537-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer C, Ring Gear (1.94 (41532-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 17 |
Spacer I, Ring Gear (2.30 (41538-MG9-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.27 |
|
| 18 |
Collar B, Rr. Distance (42625-MW5-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €18.62 |
|
| 19 |
Bolt, Flange, 6X12 (Ct200 (90013-883-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €3.46 |
|
| 20 |
Bolt, Plug, (90081-MC7-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.56 |
|
| 21 |
Bolt, Flange, 8X27 (90133-MB0-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €8.39 |
|
| 22 |
Bolt, Flange, 10X35 (90134-HA0-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €7.88 |
|
| 23 |
Nut, Flange, 18Mm (90306-MN5-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €18.27 |
|
| 24 |
Nut, Hex., 16Mm (90381-MT3-000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €6.67 |
|
| 25 |
Bearing, Radial Ball, 65X (91051-MN5-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €80.97 |
|
| 26 |
Bearing, Radial Ball, 35X (91052-MN5-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €39.67 |
|
| 27 |
Bearing, Radial Ball (Qj3 (91061-MT3-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €118.99 |
|
| 28 |
Oil Seal, 35X54X8 (Nok) (91261-MY3-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €11.41 |
|
| 29 |
Limited Quantity Available Please Contact Us (91262-MY3-003) |
|
||
| 30 |
Oil Seal, 65X85X7 (Nok) (91265-MY3-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €12.73 |
|
| 31 |
O-Ring, 30.8Mm (91302-001-020) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €3.68 |
|
| 32 |
O-Ring, 39.5X2.4 (Arai) (91356-MG9-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €4.03 |
|
| 33 |
O-Ring, 64.5X3.5 (Arai) (91359-MG9-003) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €5.78 |
|
| 34 |
Bolt, Hex., 6X12 (92101-060120A) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €0.86 |
|
| 35 |
Limited Quantity Available Please Contact Us (92900-100320E) |
|
||
| 36 |
Washer, Drain Plug, 14Mm (94109-14000) |
Sw / Kph Sp / Kph Fi / Kph Si / Cl Kph G / Kph Ed / Kph E / Mkh Ar / Kph F / Kph | €0.57 |
|
