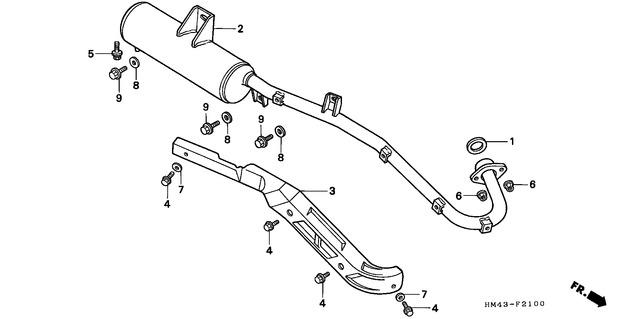

Honda TRX300T (1996) F-21 STEP

F-21 STEP
Ref. Description Area Price Quantity
1 Gasket, Ex. Pipe (18291-MN4-920)
 U / Spm E / Ref Ed / Ref C / Ref €5.31
1 Pedal, Gear Change (24700-HM5-850)
 An A €77.01
2 Rubber, Change Pedal (24781-371-000)
 An A €4.49
2 Muffler Comp (18300-HM5-930)
 U / Spm E / Ref Ed / Ref C / Ref €3,211.37
3 Limited Quantity Available
Please Contact Us
(28241-HA6-680)
3 PROTECTOR, EX. PIPE (18321-HC5-900)
 U / Spm E / Ref Ed / Ref C / Ref €52.00
4 ARM ASSY., KICK STARTER (28300-HC4-750)
 An A €166.38
4 Bolt, Flange, 6X12 (90011-750-801)
 U / Spm E / Ref Ed / Ref C / Ref €2.42
5 Plug, Kick Arm (28302-965-000)
 An A €2.57
5 Bolt, Arrester (90183-HM5-850)
 U / Spm E / Ref Ed / Ref C / Ref €4.53
6 Nut, Special, 8Mm (90217-657-000)
 U / Spm E / Ref Ed / Ref C / Ref €2.96
6 Spring, Kick Starter Stop (28333-124-000)
 An A €2.21
7 Washer, Plain, 6Mm (94103-06700)
 U / Spm E / Ref Ed / Ref C / Ref €0.90
8 Washer, Plain, 10Mm (94103-10700)
 U / Spm E / Ref Ed / Ref C / Ref €1.00
8 Limited Quantity Available
Please Contact Us
(35351-HC5-880)
9 Spring,Stop Switc (35357-KE4-730)
 An €3.28
9 Bolt, Flange, 10X18 (95701-1001807)
 U / Spm E / Ref Ed / Ref C / Ref €1.71
10 Cable Comp., Foot Brake (43470-HC5-971)
 An A €43.95
11 Discontinued
(94103-06700)
12 Spring, Brake Pedal (46514-HM5-730)
 An A €8.81
13 Rubber, Stand Stopper (50505-GA7-730)
 An A €1.99
14 Limited Quantity Available
Please Contact Us
(50610-HC5-970)
15 Discontinued
(94103-06700)
16 Bolt, Flange, 6X20 (90118-968-000)
 An A €3.39
17 Washer, 17.5Mm (90512-303-000)
 An A €1.78
18 Dust Seal, 17X23X3 (Nok) (91206-968-003)
 An A €5.07
19 O-Ring, 13.5X1.4 (91307-PH7-660)
 An A €2.21
20 Pin, Split, 3.0X25 (94201-30250)
 An A €0.68
21 Bolt, Flange, 8X16 (95701-0801607)
 An A €1.39
22 Bolt, Flange, 8X28 (95701-0802807)
 An A €1.71
23 Ball, Steel, #8 (1/4) (96211-08000)
 An A €0.54
