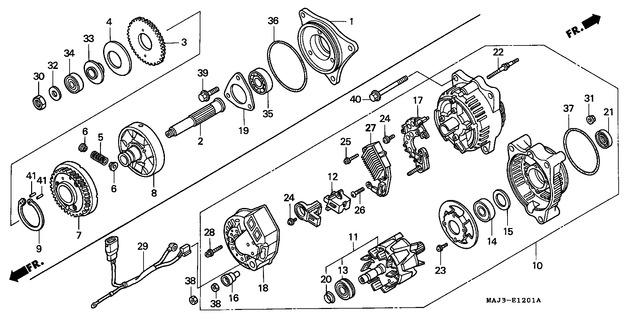

Honda ST1100AT (1996) E-12-01 GENERATOR (ST1100T / V/W/AT/AV/AW)

E-12-01 GENERATOR (ST1100T / V/W/AT/AV/AW)
Ref. Description Area Price Quantity
1 Discontinued
(90408-MN5-000)
2 Shaft, A.C. Generator Dam (13411-MAJ-G20)
 U F Cm Ar E Sw Sp Ed G It €83.90
3 Limited Quantity Available
Please Contact Us
(13432-MT3-000)
4 Spring, A.C. Generator (13435-MZ0-300)
 U F Cm Ar E Sw Sp Ed G It €8.13
5 Discontinued
(90408-MN5-000)
6 Limited Quantity Available
Please Contact Us
(13438-MT3-300)
7 Gear Comp., A.C. Generato (13441-MT3-000)
 U F Cm Ar E Sw Sp Ed G It €288.25
8 Limited Quantity Available
Please Contact Us
(13450-MT3-000)
9 Limited Quantity Available
Please Contact Us
(14447-MR8-003)
10 Discontinued
(90408-MN5-000)
11 Discontinued
(90408-MN5-000)
12 Holder Assy., Brush (31105-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €33.71
13 Bearing, Rr. (31111-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €27.82
14 Bearing,Front (31114-MAJ-G42)
 U F Cm Ar E Sw Sp Ed G It €35.82
15 Discontinued
(90408-MN5-000)
16 Bush, Insulation (31119-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €7.32
17 Discontinued
(90408-MN5-000)
18 Cover, Rr. End (31135-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €19.47
19 Set Ring (31138-MT3-300)
 U F Cm Ar E Sw Sp Ed G It €10.30
20 Cover, Bearing (31138-PD1-004)
 U F Cm Ar E Sw Sp Ed G It €6.46
21 Oil Seal (31141-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €10.27
22 Bolt, Stud (31145-PE9-941)
 U F Cm Ar E Sw Sp Ed G It €6.81
23 Screw (31146-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €2.78
24 Screw-Washer (31147-PT0-003)
 U F Cm Ar E Sw Sp Ed G It €2.07
25 Screw-Washer, 4X25 (31148-PD1-004)
 U F Cm Ar E Sw Sp Ed G It €2.61
26 Screw (31149-PZ1-003)
 U F Cm Ar E Sw Sp Ed G It €2.39
27 Regulator Assy. (###) (31150-PZ3-003)
 U F Cm Ar E Sw Sp Ed G It €411.03
28 Bolt (31153-PZ1-003)
 U F Cm Ar E Sw Sp Ed G It €2.35
29 Discontinued
(90408-MN5-000)
30 Nut, Hex., 14Mm (90204-MN5-000)
 U F Cm Ar E Sw Sp Ed G It €4.17
31 Nut-Washer, 5Mm (90231-PD1-014)
 U F Cm Ar E Sw Sp Ed G It €1.71
32 Washer, 14.2X23X2.6 (90408-MN5-000)
 U F Cm Ar E Sw Sp Ed G It €3.96
33 Limited Quantity Available
Please Contact Us
(90413-MT3-000)
34 Bearing, Radial Ball, 600 (91002-MT3-003)
 U F Cm Ar E Sw Sp Ed G It €18.59
35 Bearing, Radial Ball, 20X (91004-MT3-003)
 U F Cm Ar E Sw Sp Ed G It €20.18
36 O-Ring, 90X2.3 (Arai) (91302-MM4-003)
 U F Cm Ar E Sw Sp Ed G It €9.56
37 O-Ring (91304-MAJ-G41)
 U F Cm Ar E Sw Sp Ed G It €5.67
38 Nut, Hex., 6Mm (94001-060800S)
 U F Cm Ar E Sw Sp Ed G It €0.64
39 Bolt, Flange, 6X16 (95701-0601600)
 U F Cm Ar E Sw Sp Ed G It €1.03
40 Bolt, Flange, 8X70 (95701-0807000)
 U F Cm Ar E Sw Sp Ed G It €2.14
41 Roller, 3X8.5 (96220-30085)
 U F Cm Ar E Sw Sp Ed G It €0.64
