Honda XL125SB (1981) F-26 FRAME BODY

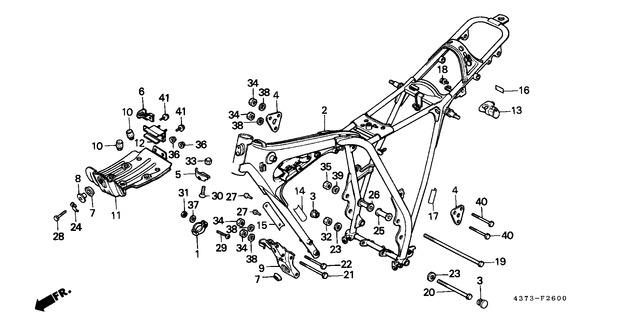

F-26 FRAME BODY
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Clamper, Clutch Cable (22878-365-670) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €8.20 |
|
| 2 |
Limited Quantity Available Please Contact Us (50100-KB1-600ZB) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (00000-000-000) |
|
||
| 3 |
Plug, Frame Side (50123-446-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €3.57 |
|
| 4 |
Plate, Engine Hanger Uppe (50138-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €6.21 |
|
| 6 |
Clip, Drain Tube (50294-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €8.13 |
|
| 7 |
Rubber, Skid Plate Mounti (50325-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €3.78 |
|
| 8 |
Collar, Skid Plate (50327-437-010) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €8.41 |
|
| 9 |
Limited Quantity Available Please Contact Us (50351-437-000ZC) |
|
||
| 9 |
Limited Quantity Available Please Contact Us (50351-437-000ZA) |
|
||
| 10 |
Rubber A, Stopper (50352-HM5-730) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €25.68 |
|
| 11 |
Plate, Skid (50355-427-790) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €102.56 |
|
| 12 |
Rubber, Skid Plate Mounti (50361-437-600) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €26.47 |
|
| 13 |
Holder Assy., Helmet (50710-382-671) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €54.69 |
|
| 14 |
Plate, Name (87125-041-680) |
Dm / Mph E / Mph Dk / Kph Sa / Kph | €2.53 |
|
| 15 |
Limited Quantity Available Please Contact Us (87501-437-600) |
|
||
| 18 |
Bolt B,Special (90106-428-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €6.06 |
|
| 19 |
Bolt,Hex.,10X220 (90135-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €12.37 |
|
| 20 |
Bolt,Hex.,10X115 (90155-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €5.49 |
|
| 21 |
Bolt, Hex., 8X85 (90157-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €4.88 |
|
| 22 |
Bolt, Hex., 8X50 (90159-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €3.68 |
|
| 23 |
Washer, Plain, 10Mm (90401-437-000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €5.67 |
|
| 24 |
Washer, 8Mm (90505-437-600) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €3.06 |
|
| 25 |
Limited Quantity Available Please Contact Us (90742-437-000ZA) |
|
||
| 26 |
Limited Quantity Available Please Contact Us (90743-437-000ZB) |
|
||
| 27 |
Screw, Rivet, (90841-001-000) |
F / Kph B / Kph Sd / Kph Ed / Kph Sw / Kph | €2.14 |
|
| 28 |
Bolt, Hex., 8X32 (92132-080320A) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €1.00 |
|
| 29 |
Screw, Pan, 5X20 (93500-050200A) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.47 |
|
| 31 |
Nut, Hex., 5Mm (94001-050000S) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.68 |
|
| 32 |
Nut, Hex., 10Mm (94001-100000S) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.82 |
|
| 34 |
Nut, Hex., 8Mm (94030-08000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €1.14 |
|
| 35 |
Nut, Hex., 10Mm (94030-10000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.82 |
|
| 36 |
Nut, Flange, 6Mm (94050-06080) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €1.07 |
|
| 37 |
Washer, Plain, 5Mm (94101-05000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.64 |
|
| 38 |
Washer, Plain, 8Mm (94101-08000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.64 |
|
| 39 |
Washer, Plain, 10Mm (94101-10000) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €0.68 |
|
| 40 |
Bolt,Hex.,8X65 (95300-0806500) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Cm / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €2.52 |
|
| 41 |
Bolt-Washer, 6X16 (93495-0601608) |
Cm / Kph | €1.67 |
|
| 41 |
Bolt, Flange, 6X12 (95701-0601208) |
Dm / Mph E / Mph F / Kph Dk / Kph B / Kph Sd / Kph Ed / Kph Sw / Kph Sa / Kph U / Kph | €1.03 |
|
