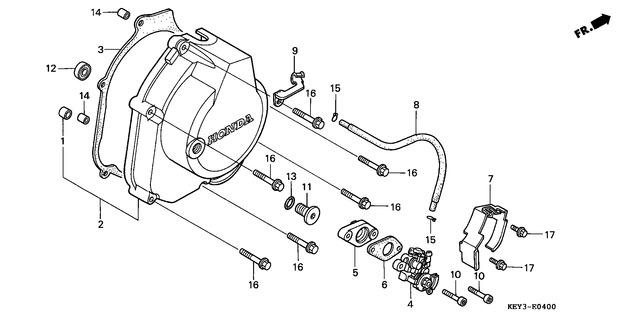

Honda FES125W (1998) E-04 RIGHT CRANKCASE COVER / OIL PUMP
E-04 RIGHT CRANKCASE COVER / OIL PUMP
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Bush, 8X12X8 (11205-GAH-003) |
Ed / Kph | €7.70 |
|
| 2 |
Discontinued (91303-MG7-003) |
|
||
| 3 |
Discontinued (91303-MG7-003) |
|
||
| 4 |
Discontinued (91303-MG7-003) |
|
||
| 5 |
Insulator, Oil Pump (15115-KFF-900) |
Ed / Kph | €15.13 |
|
| 6 |
Gasket B, Oil Pump Insula (15117-KFF-900) |
Ed / Kph | €5.42 |
|
| 7 |
Discontinued (91303-MG7-003) |
|
||
| 8 |
Discontinued (91303-MG7-003) |
|
||
| 9 |
Limited Quantity Available Please Contact Us (32906-KFF-900) |
|
||
| 10 |
Bolt,Special 5Mm (90005-KFF-900) |
Ed / Kph | €1.75 |
|
| 11 |
Cap, 14Mm (90084-MN8-010) |
Ed / Kph | €11.13 |
|
| 12 |
Discontinued (91303-MG7-003) |
|
||
| 13 |
O-Ring,13.8X2.5 (91303-MG7-003) |
Ed / Kph | €4.71 |
|
| 14 |
Dowel Pin, 8X10 (94301-08100) |
Ed / Kph | €2.29 |
|
| 15 |
Clip, Tube (B6.5) (95002-02650) |
Ed / Kph | €0.68 |
|
| 16 |
Bolt, Flange, 6X35 (95701-0603500) |
Ed / Kph | €1.22 |
|
| 17 |
Bolt, Flange, 6X14 (96001-0601400) |
Ed / Kph | €1.22 |
|
