Honda GL1500SEW (1998) F-10 FRONT FORK

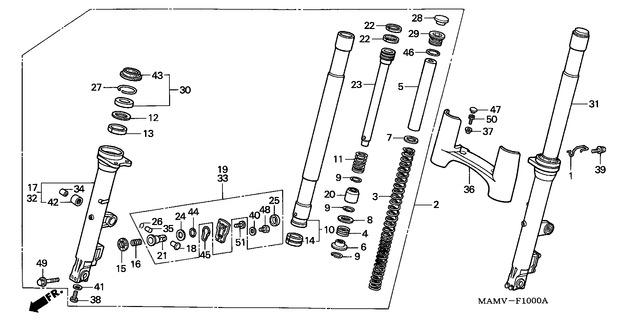

F-10 FRONT FORK
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Limited Quantity Available Please Contact Us (44832-MT8-000) |
|
||
| 2 |
Limited Quantity Available Please Contact Us (51400-MAM-003) |
|
||
| 3 |
Discontinued (90544-283-000) |
|
||
| 4 |
Spring, Oil Lock (51402-MB7-611) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €3.89 |
|
| 5 |
Collar, Spring (Showa) (51402-MN0-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €16.20 |
|
| 6 |
Discontinued (90544-283-000) |
|
||
| 7 |
Plate, Spring Joint (51404-MB4-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €4.67 |
|
| 8 |
Seat, Spring (51404-MB7-611) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €3.10 |
|
| 9 |
Ring, Stopper (51405-MB7-611) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €2.89 |
|
| 10 |
Pipe Comp., Fr. Fork (Sho (51410-MAM-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €317.86 |
|
| 11 |
Spring, Rebound (Showa) (51411-MN5-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €7.53 |
|
| 12 |
Ring, Back Up (Showa) (51412-MB4-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €6.99 |
|
| 13 |
Bush, Guide (Showa) (51414-KCR-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €10.17 |
|
| 14 |
Bush, Slider (Showa) (51415-KCR-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €14.83 |
|
| 15 |
Packing (51417-MJ6-013) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €7.49 |
|
| 16 |
Discontinued (90544-283-000) |
|
||
| 17 |
Discontinued (90544-283-000) |
|
||
| 18 |
Collar, Piston (51423-MJ0-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €10.59 |
|
| 19 |
Discontinued (90544-283-000) |
|
||
| 20 |
Piece, Oil Lock (Showa) (51432-MN5-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €25.33 |
|
| 21 |
Piston (51436-MT8-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €23.47 |
|
| 22 |
Ring, Piston (Showa) (51437-MN5-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €6.99 |
|
| 23 |
Limited Quantity Available Please Contact Us (51440-MN5-003) |
|
||
| 24 |
Rubber, Stopper (51441-MT8-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €3.57 |
|
| 25 |
Boot, Piston Case (51442-MJ0-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €5.85 |
|
| 26 |
Ring, Stopper (51445-MJ0-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €2.42 |
|
| 27 |
Ring, Oil Seal Stopper (S (51447-KA4-711) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €4.35 |
|
| 28 |
Cap, Fork Pipe (Showa) (51449-MN5-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €5.99 |
|
| 29 |
Discontinued (90544-283-000) |
|
||
| 30 |
Seal Set, Fr. Fork (51490-MN8-305) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €35.60 |
|
| 31 |
Limited Quantity Available Please Contact Us (51500-MAM-003) |
|
||
| 32 |
Discontinued (90544-283-000) |
|
||
| 33 |
Case Comp., L. Piston (51530-MT8-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €176.53 |
|
| 34 |
Collar, L. Fr. Caliper Br (51536-ML7-000) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €9.27 |
|
| 35 |
Bush, Rubber (51545-MJ0-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €7.49 |
|
| 36 |
Cover, Fr. Fork *Tmrcr2 * (61050-MW5-000ZG) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €716.22 |
|
| 37 |
Collar (64630-GE3-610) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €3.25 |
|
| 38 |
Bolt, Socket, 8Mm (Showa) (90116-KV3-701) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €3.00 |
|
| 39 |
Discontinued (90544-283-000) |
|
||
| 40 |
Packing, Fr. Fork Drain C (90543-273-000) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €1.71 |
|
| 41 |
Washer, Special, 8Mm (Sho (90544-283-000) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €2.57 |
|
| 42 |
Limited Quantity Available Please Contact Us (91071-ML7-003) |
|
||
| 43 |
Seal, Dust (91254-MM8-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €18.66 |
|
| 44 |
O-Ring, 15.8X2.4 (Showa) (91304-MJ0-003) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €3.10 |
|
| 45 |
Limited Quantity Available Please Contact Us (91308-MJ0-003) |
|
||
| 46 |
Limited Quantity Available Please Contact Us (91356-KF0-003) |
|
||
| 47 |
Discontinued (90544-283-000) |
|
||
| 48 |
Bolt, Hex., 6X8 (92101-060080A) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €0.86 |
|
| 49 |
Limited Quantity Available Please Contact Us (96400-0804508) |
|
||
| 50 |
Socket Bolt,6X10 (96700-0601008) |
U / Kph G / Kph Sw / Kph Sp / Kph Si / Mkh Ed / Kph Fi / Kph Ar / Kph E / Mkh F / Kph | €1.99 |
|
| 51 |
Limited Quantity Available Please Contact Us (96600-0601617) |
|
