Honda GL1500AW (1998) E-05 WATER PUMP

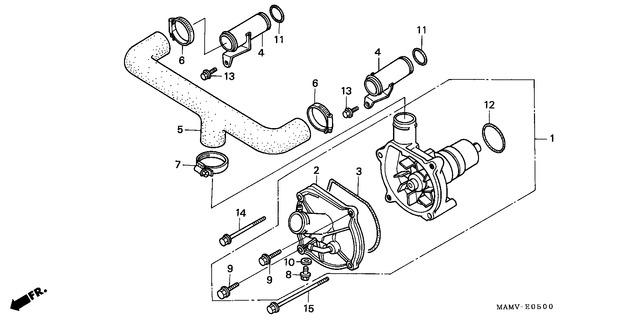

E-05 WATER PUMP
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Pump Assy., Water (19200-MAM-A60) |
U / Kph | €282.54 |
|
| 2 |
Discontinued (90430-PD6-003) |
|
||
| 3 |
Gasket, Water Pump Cover (19226-MN5-000) |
U / Kph | €4.46 |
|
| 4 |
Pipe, Water In. (19411-MN5-000) |
U / Kph | €30.75 |
|
| 5 |
Hose, Water In. (19414-MN5-000) |
U / Kph | €37.66 |
|
| 6 |
Clamp, Water Hose (19503-MB1-870) |
U / Kph | €13.23 |
|
| 7 |
Clamp, Water Hose (19515-MJ4-670) |
U / Kph | €12.69 |
|
| 8 |
Bolt, Flange, 6X12 (Ct200 (90013-883-000) |
U / Kph | €3.46 |
|
| 9 |
Bolt, Flange, 6X25 (Ct200 (90121-952-000) |
U / Kph | €2.82 |
|
| 10 |
Washer, Sealing, 6Mm (90430-PD6-003) |
U / Kph | €4.39 |
|
| 11 |
O-Ring,18.3X2.3 (91301-147-023) |
U / Kph | €2.89 |
|
| 12 |
O-Ring, 32.95X2.62 (Arai) (91302-MB0-013) |
U / Kph | €4.28 |
|
| 13 |
Bolt, Flange, 6X14 (95701-0601408) |
U / Kph | €1.03 |
|
| 14 |
Bolt, Flange, 6X60 (95701-0606008) |
U / Kph | €2.03 |
|
| 15 |
Bolt, Flange, 6X95 (95701-0609508) |
U / Kph | €2.03 |
|
