Honda CB600FY (2000) F-02 DASH / METER

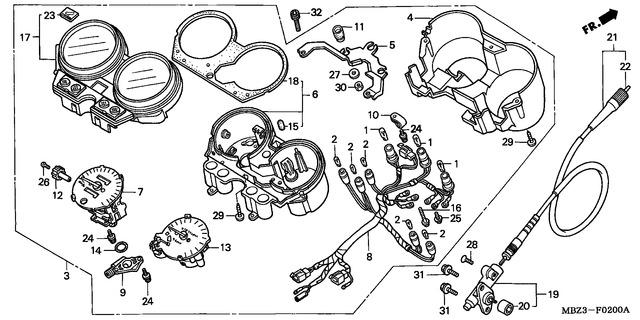

F-02 DASH / METER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Bulb, Wedge Base (T10) (1 (34908-MB9-871) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €3.68 |
|
| 2 |
Bulb, Wedge Base (12V 1.7 (34907-KW3-003) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €3.04 |
|
| 3 |
Discontinued (90525-030-000) |
|
||
| 4 |
Cover (37110-MW3-731) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €125.99 |
|
| 5 |
Bracket Assy. (37120-KBH-901) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €41.38 |
|
| 6 |
Case Assy., Inner (37130-MBZ-611) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €128.88 |
|
| 7 |
Speedometer Assy. (Kph) (37200-MBZ-611) |
H / Kph Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €315.32 |
|
| 7 |
Limited Quantity Available Please Contact Us (37200-MBZ-601) |
|
||
| 8 |
Discontinued (90525-030-000) |
|
||
| 9 |
Discontinued (90525-030-000) |
|
||
| 10 |
Clamp (37215-KS3-901) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €1.78 |
|
| 11 |
Rubber, Meter Setting (37215-ML0-008) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €3.81 |
|
| 12 |
Knob, Trip Meter (37220-445-008) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €9.63 |
|
| 13 |
Limited Quantity Available Please Contact Us (37250-MBZ-681) |
|
||
| 14 |
Seal (37264-ML7-671) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €2.21 |
|
| 15 |
Rubber, Cushion (37304-198-901) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €3.32 |
|
| 16 |
Screw-Washer, 3X22 (37305-KE5-008) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €3.25 |
|
| 17 |
Case Assy., Upper (37610-MBZ-611) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €146.53 |
|
| 18 |
Packing (37613-KAF-008) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €20.41 |
|
| 19 |
Discontinued (90525-030-000) |
|
||
| 20 |
Joint, Speedometer (44808-MR7-013) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €9.48 |
|
| 21 |
Cable Assy., Speedometer (44830-MBZ-610) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €34.96 |
|
| 22 |
Cable, Inner (44831-MBZ-610) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €9.84 |
|
| 23 |
Emblem, Wing Mark (86150-MW3-300) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €12.60 |
|
| 24 |
Screw-Washer, Special, 4X (90035-166-008) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €1.99 |
|
| 25 |
Screw-Washer, 3X18 (90133-SL9-003) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €3.96 |
|
| 26 |
Screw, Pan, 2X6 (90158-KM7-911) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €2.25 |
|
| 27 |
Washer B, Handle Holder (90525-030-000) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €2.85 |
|
| 28 |
Screw, Oval, 5X20 (93700-050200A) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €0.86 |
|
| 29 |
Screw, Tapping, 4X16 (93903-24410) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €0.68 |
|
| 30 |
Nut, Hex., 6Mm (94001-062000S) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €0.86 |
|
| 31 |
Bolt, Flange, 6X12 (96001-0601200) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €1.39 |
|
| 32 |
Bolt, Socket, 6X14 (96600-0601407) |
H / Kph Std E / Mkh Std Ed / Kph Std Ed / Kph Std 34P Ed / Kph Std 50P H / Kph Std 34P F / Cmf Kph Std F / Cmf Kph Std 34P Sw / Kph Std | €1.57 |
|
