Honda CB750F21 (2001) E-18-01 CARBURETOR (COMPONENT PARTS)

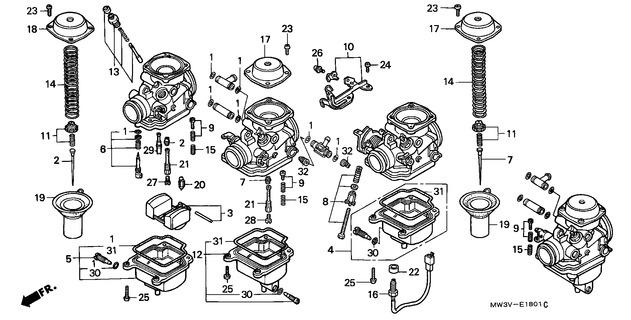

E-18-01 CARBURETOR (COMPONENT PARTS)
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Gasket Set (16010-MW3-A80) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €56.75 |
|
| 2 |
Needle Set, Jet (16027-MW3-G00) |
Sw / Kph Sp / Kph E / Mkh F / Cmf Kph G / Kph Ed / Kph | €72.59 |
|
| 2 |
Needle Set, Jet (16012-MW3-G00) |
Sp / Kph E / Mkh F / Cmf Kph G / Kph Ed / Kph | €60.17 |
|
| 2 |
Needle Set, Jet (16012-MW3-610) |
Ar / Kph | €47.44 |
|
| 3 |
Float Set (16013-KR3-980) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €45.09 |
|
| 4 |
Chamber Set, Float (16015-KFG-000) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €68.84 |
|
| 4 |
Limited Quantity Available Please Contact Us (16015-MW3-A90) |
|
||
| 5 |
Limited Quantity Available Please Contact Us (16015-MW3-A90) |
|
||
| 6 |
Screw Set (16016-ME3-003) |
Ar / Kph | €24.82 |
|
| 6 |
Screw Set (16016-KFG-890) |
Sw / Kph | €19.30 |
|
| 6 |
Screw Set (16016-KR3-980) |
Sp / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €18.91 |
|
| 7 |
Needle Set, Jet (16027-MW3-G00) |
Sw / Kph Sp / Kph E / Mkh F / Cmf Kph G / Kph Ed / Kph | €72.59 |
|
| 7 |
Needle Set, Jet (16012-MW3-610) |
Ar / Kph | €47.44 |
|
| 8 |
Screw Set (16028-MJ0-602) |
Sp / Kph E / Mkh F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €45.23 |
|
| 8 |
Limited Quantity Available Please Contact Us (16028-MJ0-601) |
|
||
| 9 |
Screw Set C (16029-KE8-004) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €19.62 |
|
| 10 |
Plate Set, Stay (16035-ME5-671) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €93.85 |
|
| 11 |
Plate Set, Valve (16037-ME5-671) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €23.04 |
|
| 12 |
Chamber Set, Float (16015-KFG-000) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €68.84 |
|
| 13 |
Valve Set, Starter (16046-ME5-672) |
Sw / Kph Ar / Kph | €57.18 |
|
| 13 |
Valve Set, Starter (16046-MW3-R00) |
Sp / Kph E / Mkh F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €61.14 |
|
| 14 |
Spring, Compression Coil (16051-MW3-680) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €10.20 |
|
| 15 |
Spring (16052-ME9-672) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €4.64 |
|
| 16 |
Discontinued (16046-MW3-R00) |
|
||
| 17 |
Top Comp. (16108-MJ1-671) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €58.57 |
|
| 18 |
Top Comp. (16108-MJ1-671) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €58.57 |
|
| 19 |
Piston Comp., Vacuum (16111-MW3-670) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €181.52 |
|
| 20 |
Valve Comp., Float (16155-413-751) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €21.51 |
|
| 21 |
Holder, Needle Jet (16165-417-004) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €22.00 |
|
| 22 |
Limited Quantity Available Please Contact Us (16172-MW3-970) |
|
||
| 23 |
Screw, Pan, 4X8 (93500-040080A) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €0.86 |
|
| 24 |
Screw, Pan, 4X10 (93500-040100A) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €0.92 |
|
| 25 |
Screw, Pan, 4X14 (93500-040140A) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €0.28 |
|
| 26 |
Screw-Washer, 4X12 (93892-0401200) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €0.68 |
|
| 27 |
Jet, Main, #108 (99101-GHB1080) |
Po / Kph 34P Sd / Kph G / Kph 34P | €12.02 |
|
| 27 |
Jet,#110 (99101-GHB1100) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €12.02 |
|
| 28 |
Jet, Main, #112 (99101-GHB1120) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph G / Kph Ed / Kph | €12.02 |
|
| 28 |
Jet,#110 (99101-GHB1100) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €12.02 |
|
| 29 |
Jet, Slow, #35 (99104-KC10350) |
Sw / Kph Po / Kph 34P Sd / Kph G / Kph G / Kph 34P | €14.70 |
|
| 29 |
Jet,Slow #35 (99103-MR40350) |
Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Ed / Kph | €19.02 |
|
| 30 |
O-Ring, 1.3X4.3 (16076-ND5-004) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €2.25 |
|
| 31 |
Gasket, Float Chamber (16163-MW3-A90) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €27.61 |
|
| 32 |
Screen, Fuel Strainer (16176-MW3-A80) |
Sw / Kph Sp / Kph E / Mkh Ar / Kph F / Cmf Kph Po / Kph 34P Sd / Kph G / Kph Ed / Kph G / Kph 34P | €10.06 |
|
