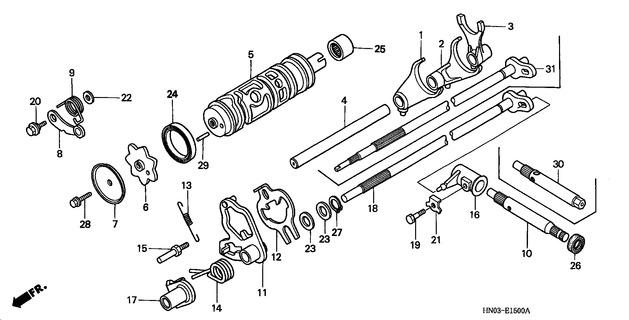

Honda TRX450S1 (2001) E-15 GEARSHIFT DRUM

E-15 GEARSHIFT DRUM
Ref. Description Area Price Quantity
1 Fork, Fr. Gearshift (24211-HM7-000)
 U / Kph Cm / Ref A / Mph €77.16
2 Fork, Center Gearshift (24212-HM7-000)
 U / Kph Cm / Ref A / Mph €77.16
3 Discontinued
(90451-GF6-000)
4 Discontinued
(90451-GF6-000)
5 Drum, Gearshift (24301-HM7-000)
 U / Kph Cm / Ref A / Mph €281.08
6 Shifter, Drum (24321-HB3-030)
 U / Kph Cm / Ref A / Mph €41.98
7 Plate, Shift Guide (24328-HB3-000)
 U / Kph Cm / Ref A / Mph €8.35
8 Stopper Comp., Gearshift (24430-HB3-000)
 U / Kph Cm / Ref A / Mph €8.63
9 Spring, Shift Drum Stoppe (24435-HM7-000)
 U / Kph Cm / Ref A / Mph €3.42
10 Spindle, Gearshift (24611-HM7-000)
 U / Kph Cm / Ref A / Mph €67.24
11 Arm Comp., Gearshift Mast (24620-HM7-000)
 U / Kph Cm / Ref A / Mph €18.91
12 Plate, Gearshift (24631-HM7-010)
 U / Kph Cm / Ref A / Mph €10.59
13 Spring, Shift Arm (24641-HB3-004)
 U / Kph Cm / Ref A / Mph €2.57
14 Spring, Gearshift Return (24651-HM7-000)
 U / Kph Cm / Ref A / Mph €5.14
15 Pin, Return Spring (24652-KY4-900)
 U / Kph Cm / Ref A / Mph €7.32
16 Arm A, Gearshift (24661-HM7-000)
 U / Kph Cm / Ref A / Mph €33.14
17 Arm Comp., Sub Gearshift (24670-HM7-010)
 U / Kph Cm / Ref A / Mph €19.62
18 Discontinued
(90451-GF6-000)
19 Discontinued
(90451-GF6-000)
20 Bolt, Gearshift Drum Stop (90023-041-010)
 U / Kph Cm / Ref A / Mph €2.89
21 Washer, Lock, 8Mm (90406-422-000)
 U / Kph Cm / Ref A / Mph €3.68
22 Washer, Drum Stopper (90417-360-000)
 U / Kph Cm / Ref A / Mph €1.99
23 Washer, Thrust, 12Mm (90451-GF6-000)
 U / Kph Cm / Ref A / Mph €1.93
24 Bearing, Radial Ball, 680 (91010-HB7-003)
 U / Kph Cm / Ref A / Mph €43.63
25 Bearing, Needle, 20X26X12 (91051-V19-003)
 U / Kph Cm / Ref A / Mph €17.48
26 Oil Seal, 14X24X6 (Arai) (91202-444-023)
 U / Kph Cm / Ref A / Mph €5.50
27 Circlip, External, 12Mm (94510-12000)
 U / Kph Cm / Ref A / Mph €0.68
28 Bolt, Flange, 6X20 (95701-0602000)
 U / Kph Cm / Ref A / Mph €1.14
29 Roller, 4X13.8 (96220-40138)
 U / Kph Cm / Ref A / Mph €0.64
