Honda GL1500C1 (2001) E-09 GENERATOR

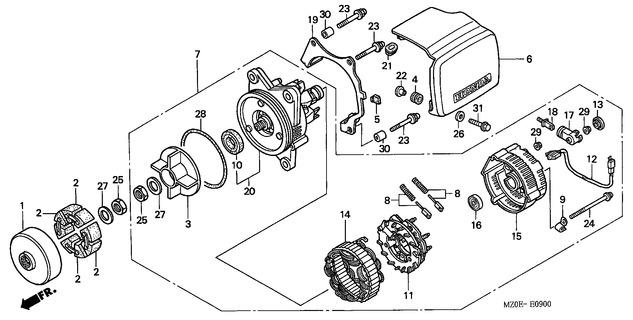

E-09 GENERATOR
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Discontinued (90403-ZW1-000) |
|
||
| 2 |
Rubber, A.C. Generator Da (13534-MN5-020) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €5.67 |
|
| 3 |
Couple, A.C. Generator (B (13541-MN5-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €63.21 |
|
| 4 |
Rubber, Cushion (17622-GB7-900) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €3.46 |
|
| 5 |
Rubber, Protector (18293-MN0-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €2.50 |
|
| 6 |
Discontinued (90403-ZW1-000) |
|
||
| 7 |
Generator Assy., A.C. (Hi (31100-MZ0-015) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €1,226.84 |
|
| 8 |
Brush (31101-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €24.68 |
|
| 9 |
Limited Quantity Available Please Contact Us (31103-MN5-005) |
|
||
| 10 |
Oil Seal (Hitachi) (31104-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €11.21 |
|
| 11 |
Rectifier Comp., Regulate (31105-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €355.84 |
|
| 12 |
Cord Comp., A.C. Generato (31108-MZ0-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €32.35 |
|
| 13 |
Cap, Terminal (31109-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €6.14 |
|
| 14 |
Core Comp., Stator (Hitac (31110-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €225.15 |
|
| 15 |
Limited Quantity Available Please Contact Us (31112-MN5-015) |
|
||
| 16 |
Bearing, Rr. (Hitachi) (31113-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €32.29 |
|
| 17 |
Housing, Out Put (Hitachi (31114-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €7.17 |
|
| 18 |
Terminal, Out Put (Hitach (31115-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €17.55 |
|
| 19 |
Stay Comp., A.C. Generato (31115-MZ0-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €23.65 |
|
| 20 |
Core Comp., Rotor (31120-MBY-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €225.15 |
|
| 21 |
Grommet, Air Cleaner Case (83551-300-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €2.82 |
|
| 22 |
Collar, Taillight Mountin (84706-163-670) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €4.35 |
|
| 23 |
Bolt,Flange,Cap,8 (90024-MZ0-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €4.82 |
|
| 24 |
Bolt,Acg (90062-MN5-005) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €4.75 |
|
| 25 |
Nut, Hex., 14Mm (90204-MN5-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €4.17 |
|
| 26 |
Washer, Plain, 6Mm (90403-ZW1-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €5.28 |
|
| 27 |
Washer, 14.2X23X2.6 (90408-MN5-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €3.96 |
|
| 28 |
O-Ring,84.5X4 (Ar (91320-MN5-003) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €6.27 |
|
| 29 |
Nut-Washer, 5Mm (94071-05080) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €0.57 |
|
| 30 |
Dowel Pin, 10X16 (94301-10160) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €2.07 |
|
| 31 |
Bolt, Flange, 6X20 (96001-0602002) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €1.57 |
|
