Honda GL1500C1 (2001) F-05 CLUTCH MASTER CYLINDER

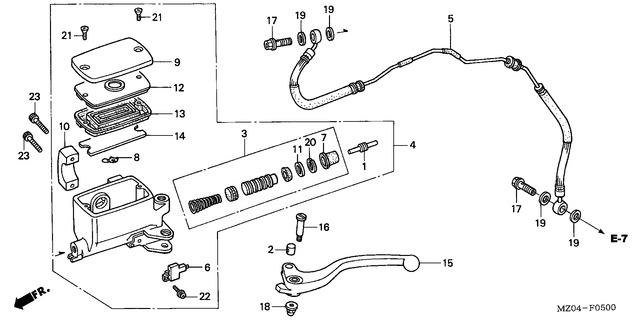

F-05 CLUTCH MASTER CYLINDER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Rod, Push (22884-MB0-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €21.44 |
|
| 2 |
Bush (22885-MB0-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €8.81 |
|
| 3 |
Piston Set, Clutch Master (22886-MB4-305) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €71.84 |
|
| 4 |
Cylinder Sub Assy., Clutc (22890-MZ0-A41) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €450.44 |
|
| 5 |
Limited Quantity Available Please Contact Us (22900-MZ0-A41) |
|
||
| 6 |
Switch Assy., Clutch (35330-MB0-003) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €22.90 |
|
| 7 |
Boot Comp. (45504-410-003) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €9.38 |
|
| 8 |
Protector (45512-MA6-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €3.60 |
|
| 9 |
Cap, Master Cylinder (Nis (45513-MR1-016) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €32.67 |
|
| 10 |
Holder, Master Cylinder ( (45517-MR1-671) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €20.84 |
|
| 11 |
Plate, Stopper (45518-MB0-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €3.42 |
|
| 12 |
Plate, Diaphragm (45518-MM5-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €11.56 |
|
| 13 |
Diaphragm (45520-MM5-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €14.87 |
|
| 14 |
Float, Fr. Master Cylinde (45523-MN5-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €5.31 |
|
| 15 |
Lever Comp., L. Handle (53178-MM5-006) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €22.66 |
|
| 16 |
Bolt, Handle Lever Pivot (90114-MA5-671) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €8.52 |
|
| 17 |
Bolt, Oil, 10X22 (Saga) (90145-MS9-612) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €9.63 |
|
| 18 |
Nut, Cap, 6Mm (90201-415-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €3.75 |
|
| 19 |
Washer, Oil Bolt (90545-300-000) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €2.53 |
|
| 20 |
Circlip, Internal, 18Mm (90651-377-003) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €2.18 |
|
| 21 |
Screw, Flat, 4X12 (93600-040121A) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €0.57 |
|
| 22 |
Screw-Washer, 4X12 (93893-0401207) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €0.64 |
|
| 23 |
Socket,Bolt,6X22 (96600-0602210) |
U / Kph Ed / Kph G / Kph F / Cmf Kph Ar / Kph Cm / Kmh E / Mkh Sw / Kph | €1.99 |
|
