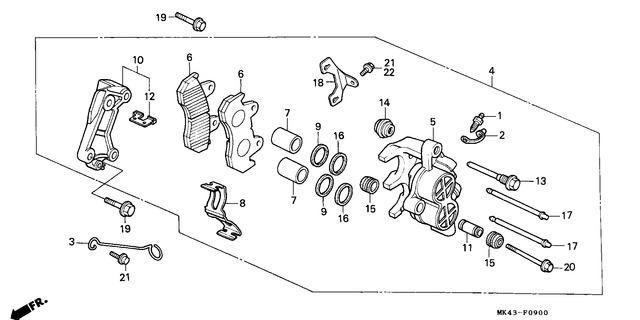

Honda XBR500SJ (1988) F-09 FRONT BRAKE CALIPER
F-09 FRONT BRAKE CALIPER
| Ref. | Description | Area | Price | Quantity |
|---|---|---|---|---|
| 1 |
Screw, Bleeder (Nissin) (43352-568-003) |
G | €5.85 |
|
| 2 |
Cap, Bleeder (43353-461-771) |
G | €4.96 |
|
| 3 |
Clamp, Speedometer Cable (44832-ME2-000) |
G | €5.89 |
|
| 4 |
Limited Quantity Available Please Contact Us (45100-MK4-692) |
|
||
| 5 |
Limited Quantity Available Please Contact Us (45101-MJ6-006) |
|
||
| 6 |
Pad Comp (45105-MM9-782) |
G | €44.42 |
|
| 7 |
Piston (45107-MA3-006) |
G | €35.35 |
|
| 8 |
Spring, Pad (45108-MA3-006) |
G | €8.45 |
|
| 9 |
Seal, Dust (45109-166-006) |
G | €4.49 |
|
| 10 |
Limited Quantity Available Please Contact Us (45110-MM2-771) |
|
||
| 11 |
Sleeve (45111-MA3-006) |
G | €11.56 |
|
| 12 |
Retainer, Bracket (45112-445-631) |
G | €6.10 |
|
| 13 |
Bolt, Pin (45131-MA3-006) |
G | €12.73 |
|
| 14 |
Boot B (45133-MA3-006) |
G | €4.96 |
|
| 15 |
Boot, Pin (45133-166-016) |
G | €3.10 |
|
| 16 |
Seal, Piston (45209-166-006) |
G | €4.96 |
|
| 17 |
Pin, Hanger (45215-MA3-006) |
G | €8.13 |
|
| 18 |
Plate (45217-MJ0-006) |
G | €6.99 |
|
| 19 |
Bolt, Flange, 10X32 (90110-KN8-730) |
G | €3.28 |
|
| 20 |
Bolt, Flange, 8X49 (90180-MN8-006) |
G | €3.81 |
|
| 21 |
Bolt, Flange, 6X10 (95701-0601007) |
G | €1.14 |
|
| 22 |
Bolt, Flange, 6X10 (96001-0601007) |
G | €1.14 |
|
