Honda VFR8002 (2002) F-18 FUEL TANK

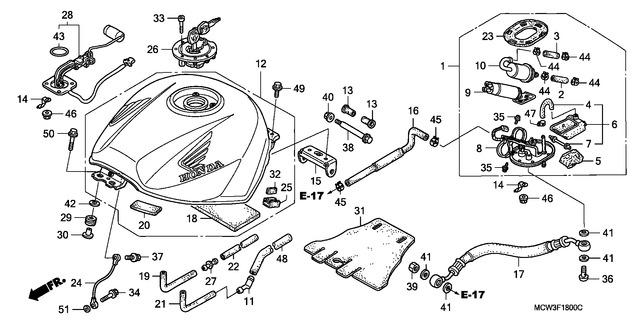

F-18 FUEL TANK
Ref. Description Area Price Quantity
1 Pump Assy., Fuel (16700-MCW-D02)
 U Ed E F Cm €851.91
2 Hose, Pump (16711-MBG-010)
 U Ed E F Cm €6.14
3 Hose B, Fuel Pump (16712-MBG-010)
 U Ed E F Cm €15.77
4 Tube, Fuel Pump Return (16713-MBG-010)
 U Ed E F Cm €3.89
5 Filter, Fuel Return (16714-MBG-000)
 U Ed E F Cm €16.69
6 Limited Quantity Available
Please Contact Us
(16716-MBG-305)
7 Limited Quantity Available
Please Contact Us
(16717-MBG-000)
8 Discontinued
(90428-PD6-003)
9 Discontinued
(90428-PD6-003)
10 Filter Comp., Fuel (16900-MBG-013)
 U Ed E F Cm €86.86
11 Joint, Tube (19103-ML7-000)
 U Ed E F Cm €5.89
12 Tank Set, Fuel (Wl) *Type (17500-MCW-D00ZB)
 U Ed E F €1,101.60
12 Tank Set, Fuel (Wl) *Type (17500-MCW-D00ZC)
 U Ed E F Cm €1,101.60
12 Limited Quantity Available
Please Contact Us
(17500-MCW-D00ZA)
13 Cushion, Fuel Tank Pivot (17506-MB1-000)
 U Ed E F Cm €4.82
14 Clamper A, Tube (17522-MCW-D00)
 U Ed E F Cm €3.46
15 Stay, Rr. Fuel Tank Setti (17524-MCW-D00)
 U Ed E F Cm €13.12
16 Hose, Fuel Return (17525-MCW-D01)
 U Ed E F Cm €18.27
17 Hose Comp., Fuel Feed (17528-MCW-D01)
 U Ed E F Cm €163.16
18 Mat B, Fuel Tank (17542-MCW-D00)
 U Ed E F Cm €18.76
19 Tube, Drain (17543-MBG-000)
 U Ed E F Cm €21.87
20 Mat C, Fuel Tank (17543-MCW-D00)
 U Ed E F Cm €5.18
21 Discontinued
(90428-PD6-003)
22 Tube, Breather (17550-MCW-D00)
 U Ed E F Cm €20.22
23 Packing, Base (17574-MN5-000)
 U Ed E F Cm €6.42
24 Cable, Fuel Tank Stopper (17575-MCW-D00)
 U Ed E F Cm €11.77
25 Cushion, Fuel Tank (17611-ML7-000)
 U Ed E F Cm €6.99
26 Cap Comp,Fuelfill (17620-MAS-E04)
 U Ed E F Cm €230.22
27 Joint, Breather Tube (17359-419-670)
 U Ed E F Cm €2.71
28 Fuel Unit Set (37080-MCW-D00)
 U Ed E F Cm €116.53
29 Rubber, Fr. Fender Mounti (61103-357-000)
 U Ed E F Cm €3.75
30 Collar, Setting (61104-422-000)
 U Ed E F Cm €6.67
31 Rubber, Rr. Heat Guard (80115-MCW-D00)
 U Ed E F Cm €44.19
32 Rubber, Protector (81214-MW0-300)
 U Ed E F Cm €3.57
33 Bolt, Socket, 4X21 (90074-MT4-000)
 U Ed E F Cm €2.89
34 Bolt, Flange, 6X20 (90104-GF6-000)
 U Ed E F Cm €3.32
35 Screw-Washer, Lock, 4X8 (90105-MBG-000)
 U Ed E F Cm €1.32
36 Bolt, Banjo, 12Mm (90108-MBG-000)
 U Ed E F Cm €7.95
37 Bolt, Flange, 6X14 (90115-GCR-000)
 U Ed E F Cm €3.04
38 Bolt, Tank Hinge (90135-MCW-D00)
 U Ed E F Cm €5.49
39 Nut A, Sealing, 12Mm (90201-PD1-000)
 U Ed E F Cm €2.85
40 Nut, U, 6Mm (Fuse Rashi) (90301-473-003)
 U Ed E F Cm €5.20
41 Washer, Sealing, 12Mm (90428-PD6-003)
 U Ed E F Cm €2.93
42 Washer, Plain, 6Mm (90525-428-900)
 U Ed E F Cm €2.50
43 O-Ring, 39.5X5 (91305-MC7-000)
 U Ed E F Cm €5.39
44 Clamp, Tube (D12) (91405-PD1-004)
 U Ed E F Cm €4.78
45 Clamp, Fuel Hose (D10.5) (91406-MCW-D01)
 U Ed E F Cm €2.85
46 Nut, Flange, 6Mm (94050-06080)
 U Ed E F Cm €1.07
47 Clamp, Tube (D8.5) (95002-4085004)
 U Ed E F Cm €2.03
48 Limited Quantity Available
Please Contact Us
(95005-8090050)
49 Bolt, Flange, 6X14 (95701-0601400)
 U Ed E F Cm €1.03
50 Bolt, Flange, 6X28 (96001-0602807)
 U Ed E F Cm €1.57
51 Washer, Plain, 6Mm (94101-06000)
 U Ed E F Cm €0.47
